ESD PCB Racks for Electronics Handling
ESD PCB racks hold boards in defined grooves or slots during production, inspection and temporary storage. This range covers open board supports rather than general warehouse shelving. Match board thickness, support span, populated-board clearance and loading direction to the model drawing.
-

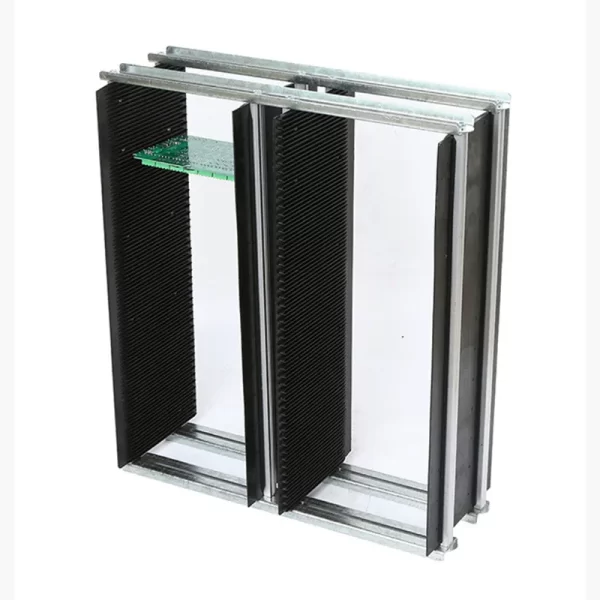

Floor-standing ESD Board Rack
-

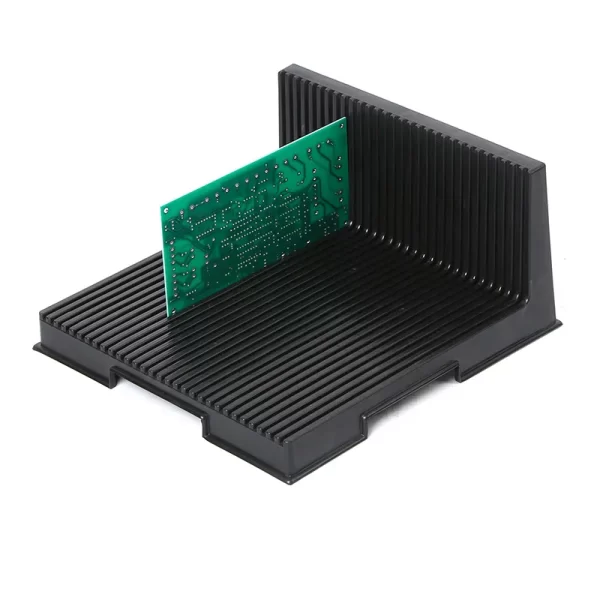

Modular Anti-static PCB Rack
-

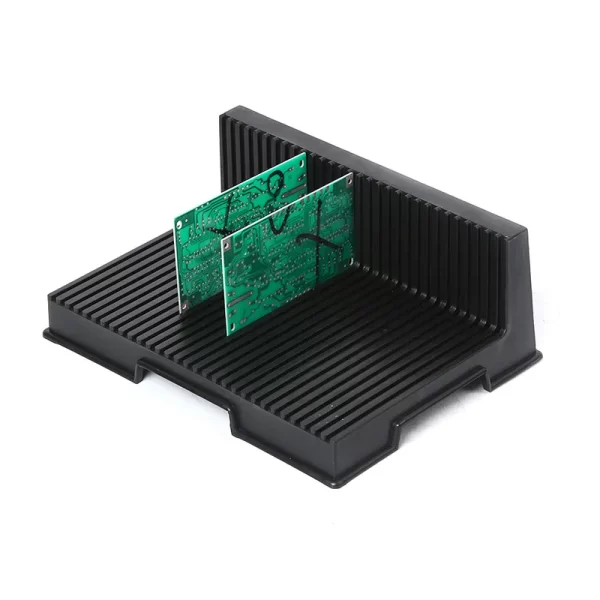

Open Frame ESD PCB Rack
-

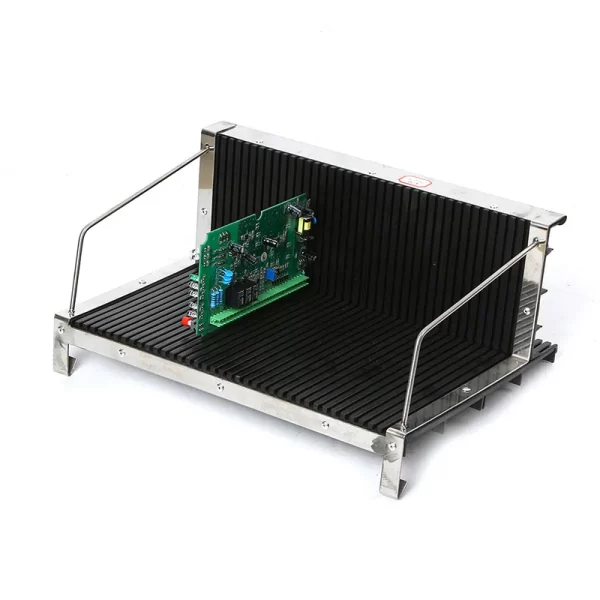

Turnkey ESD Rack Solution
Compare published ESD PCB rack geometries
| Published model | Outside dimensions | Groove width / depth | Pitch / slots |
|---|---|---|---|
| QD-9805401 | 470 × 190 × 545 mm | 5 / 3 mm | 10 mm / 49 |
| QD-9805404 | 270 × 255 × 130 mm | 2.8 / 4 mm | 8 mm / 30 |
| QD-9805406 | 410 × 280 × 22 mm | 2.8 / 5 mm | 10 mm / 42 |
The figures come from the linked specification tables. Slot count is a geometric listing, not the number of populated boards that will necessarily fit. Board thickness, component height, engagement and adjacent-board clearance must be checked together.
Open PCB rack or SMT magazine rack?
An open support can suit a bench or inspection step where the operator needs direct board access. A PCB magazine rack provides a different slotted carrier format for storage and equipment handoff. Select by the required support and interface, not by the shared word “rack.” If the load must travel between stations, compare PCB trolleys as a separate movement decision.
Check the board support before specifying capacity
Provide the largest and smallest boards, thickness, component projection on each face and permitted edge-contact areas. Confirm the usable support span rather than treating outside dimensions as a board-size limit. Where one board occupies more than one nominal pitch, record which positions must remain empty.
Try insertion and removal with representative assembled boards. Check for movement, contact with neighboring boards and interference from labels or handles. The selected support should carry the intended board surfaces without using a sensitive component as a stop.
What evidence should accompany an ESD rack?
Request the exact model, material description, resistance test basis and any specified grounding or bonding arrangement. A coating description or an ESD label does not prove the entire installed configuration. Temperature and cleaning requirements also belong to the selected model. Use the rack selection guide to connect the storage location with the handling route.
