Product Introduction

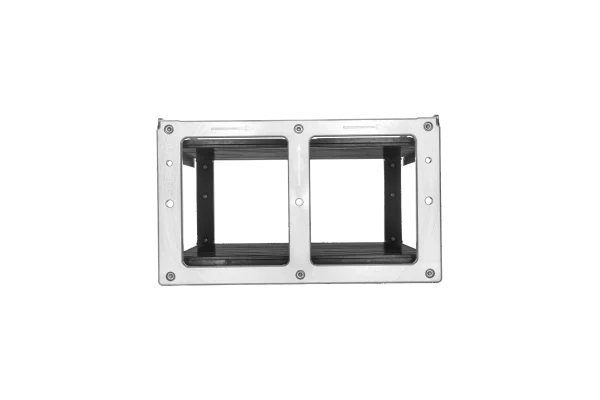

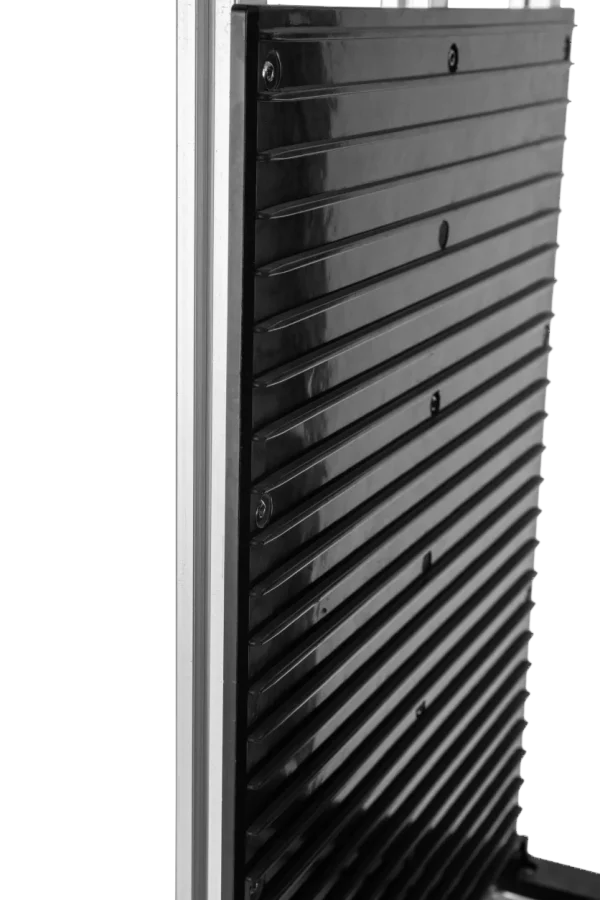

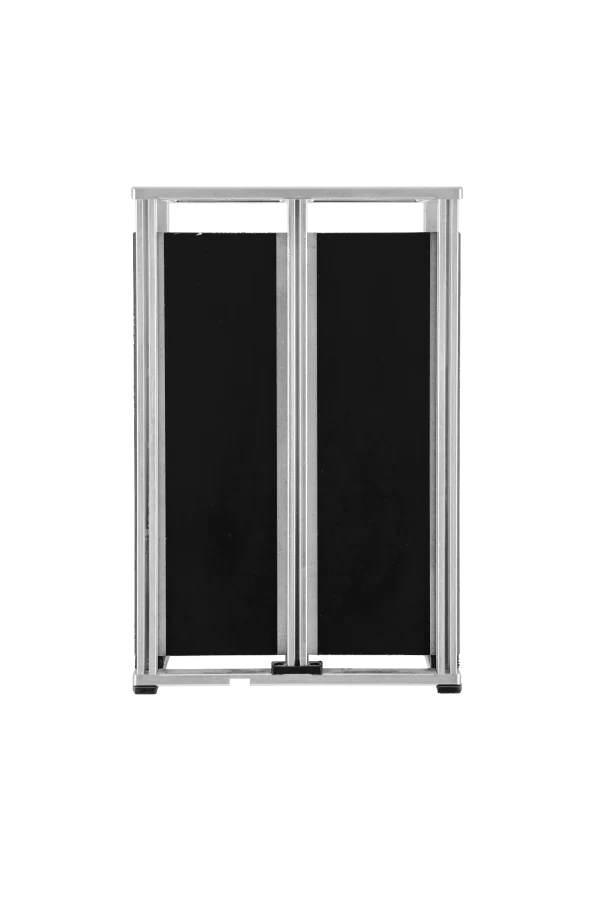

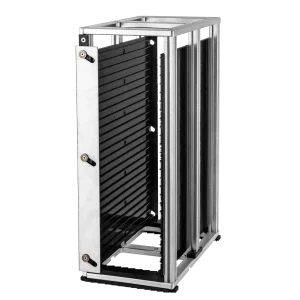

The fixed ESD Magazine Rack is a cost-effective, standard static-safe storage device tailored for mass production of standard-size circuit boards. Adopting high-quality permanent anti-static material, it maintains consistent surface resistance between 10⁴ and 10⁸ Ω, effectively eliminating static buildup and protecting sensitive PCBs and electronic components from ESD damage, dust adhesion and surface abrasion during production, testing and storage.

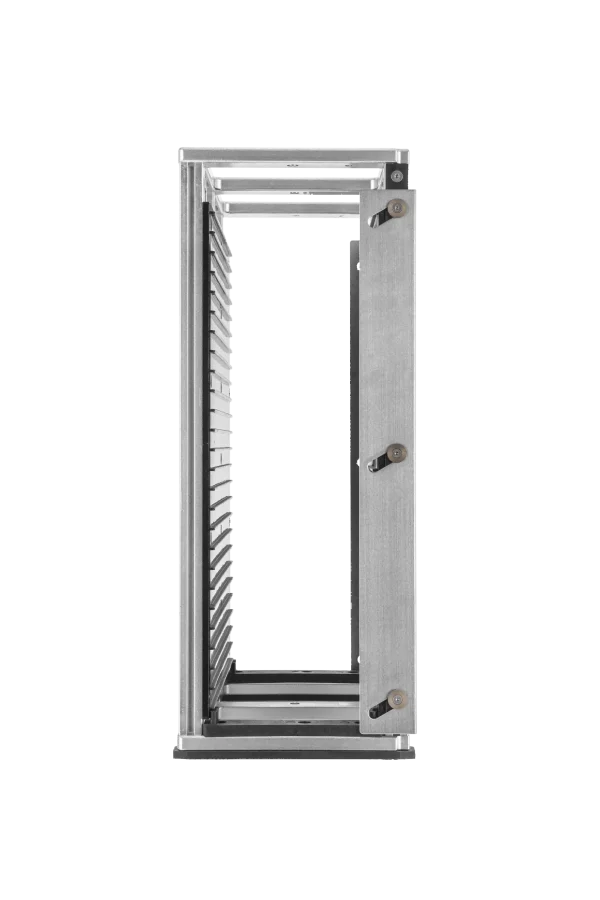

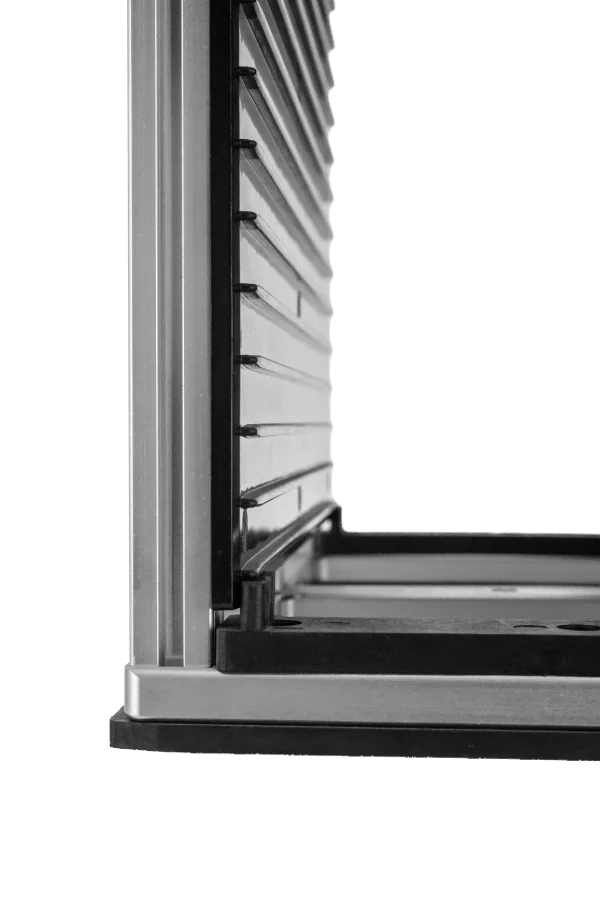

Different from adjustable models, this non-adjustable rack features fixed standard slot spacing, which delivers higher structural rigidity and more stable board positioning for long-term repeated use. Reinforced with an aluminum alloy bottom plate, the entire rack is anti-deformation, load-bearing and durable, avoiding base bending during stacking and frequent handling. All slots are finely polished with smooth burr-free surfaces to ensure safe board placement.
Stackable and lightweight, it greatly saves workshop space and fits perfectly with SMT automatic loaders and unloaders. Widely applicable in standardized SMT production lines, PCB mass manufacturing, electronic assembly and cleanroom workshops, it is an ideal low-maintenance ESD storage solution for stable-volume production.
Technical Specification
| Product name | ESD Magazine Rack | |
| Product model | QD-9805801 | |
 |
||
| Adjustment method | Not adjustable | |
| Specification parameters | ●External dimensions: | 330* 192*506mm |
| ●Base position: | A: 33. 5mm; B: 42mm | |
| ●Adjustable width: | 138mm | |
| ●Groove depth: | 2.8mm | |
| ●Slot width: | 13 mm | |
| ●Pitch: | 16 mm | |
| ●Number of slots: | 25 | |
| ●Weight: | 9.2Kg | |
| ●Carrier: | 30kg | |
| Product description | ◆Baffle plate mechanism: paddle plate | |
| ◆Static index: 10e4-10e8 | ||
| ◆Side board structure: whole board | ||
| ◆Bottom plate material: aluminum alloy bottom plate | ||
| Temperature resistance options | 口220C°C (can enter 180°C oven) | |
| Optional accessories | □Turnover cart (3W-9806101 series) | |
*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
