Product Introduction

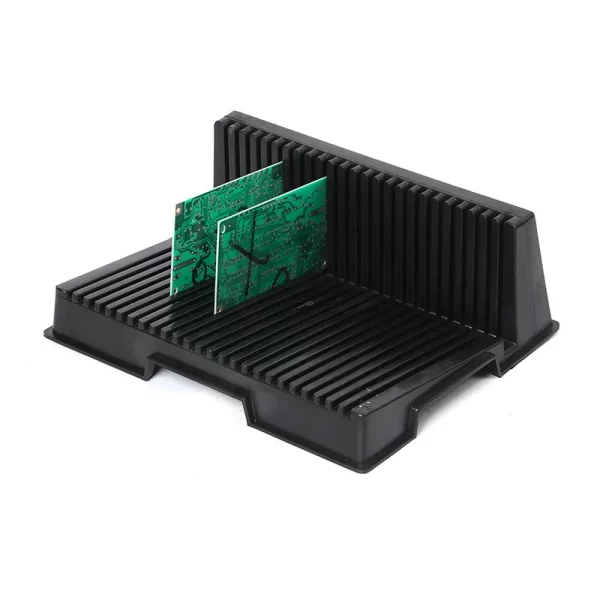

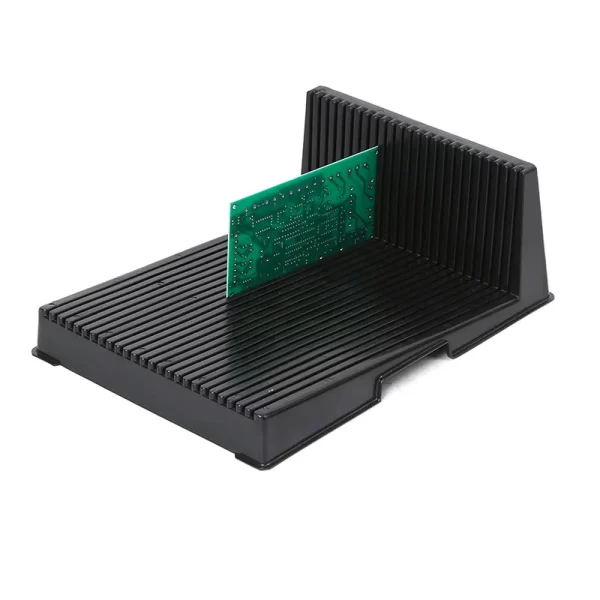

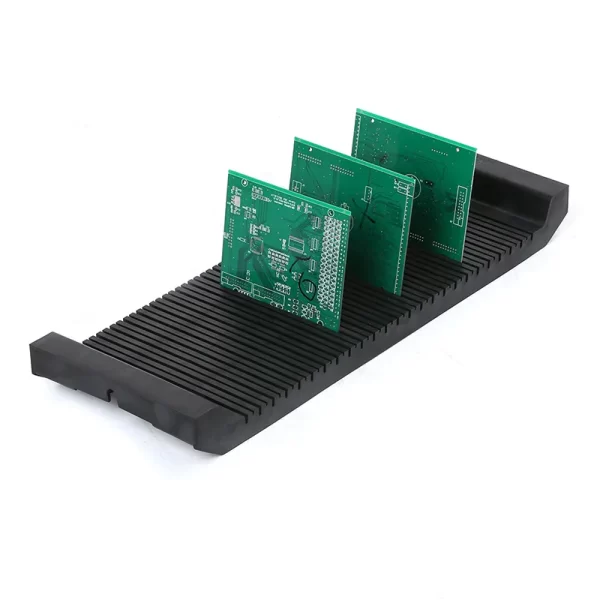

Anti-static racks are storage devices designed to reduce the buildup and discharge of static electricity. They are widely used in electronics, semiconductors, medical applications, and other static-sensitive industries. By protecting stored items from electrostatic damage, they also help improve workplace safety, organization, and operating efficiency. These racks are also known as tray racks, anti-static tray racks, or anti-static turnover racks. In electronics production, esd pcb racks are commonly used to handle and store boards safely throughout the process.
Application Scenario
Electronics manufacturing: Suitable for temporary storage of SMT components such as chips, LEDs, capacitors, and resistors, helping reduce the risk of static damage during handling and transfer.
Laboratory: Used for dust-proof and anti-static storage of precision instruments, optical lenses, and medical consumables.
Warehousing and logistics: Helps separate static-sensitive products into different circulation areas, improving workshop organization and 6S management. ESD PCB racks are also useful in controlled storage and transfer environments where board protection is essential.
Technical Specification
| Product name | ESD Rack | ||||
| Product model | QD-9805403-2 | QD-9805404 | QD-9805404-2 | QD-9805405 | |
 |
 |
 |
 |
||
| Specification parameters | ●External dimensions: | 475*175*47mm | 270*255*130mm | 355*270*128mm | 205*265*95mm |
| ●Groove depth: | Shallow groove: 3mm Deep groove: 7. 5mm | 4mm | 5mm | 5mm | |
| ●Groove width: | Shallow slot: 2mm Deep slot: 3mm | 2.8mm | 2.5mm | 3mm | |
| ●Pitch: | Shallow groove: 15mm Deep groove: 15mm | 8mm | 9.5mm | 9mm | |
| ●Number of slots: | Shallow slot: 24mm Deep slot: 25mm | 30 | 25 | 25 | |
| ●Weight: | 0.51kg | 0.42kg | 0.64kg | 0.47kg | |
| Product description | ◆Divided into deep and shallow slots | ||||
| ◆Static index: 10e4-10e8Ω | |||||
| Temperature resistance options | □120°C □150°C | ||||
| Color customization | □  □  □  □other |
||||
| Optional accessories | □Anti-static label | ||||
