Product Introduction

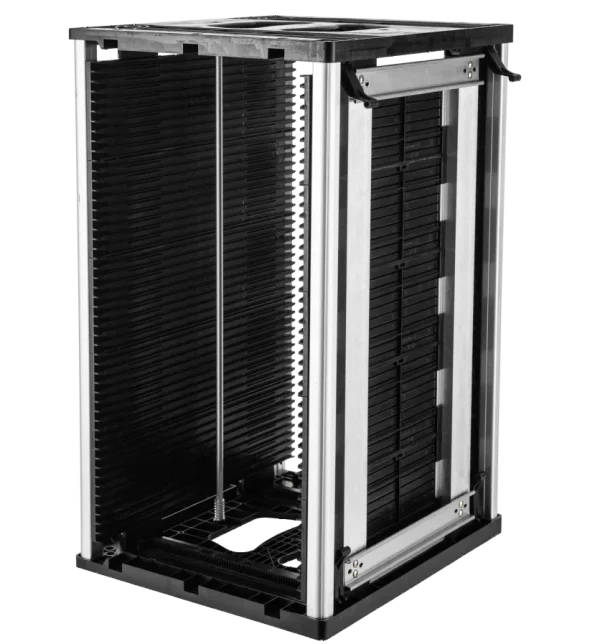

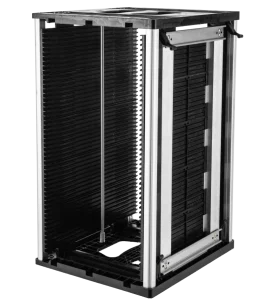

ESD Magazine Rack is a professional anti-static storage and turnover equipment specially developed for SMT production lines, PCB processing factories, electronic assembly and clean room environments.
Made of permanent static-dissipative material, the rack features a stable surface resistance of 10⁴~10⁸ Ω, which effectively releases static charges and prevents electrostatic damage, circuit breakdown and component scrap of sensitive PCBs and electronic parts.

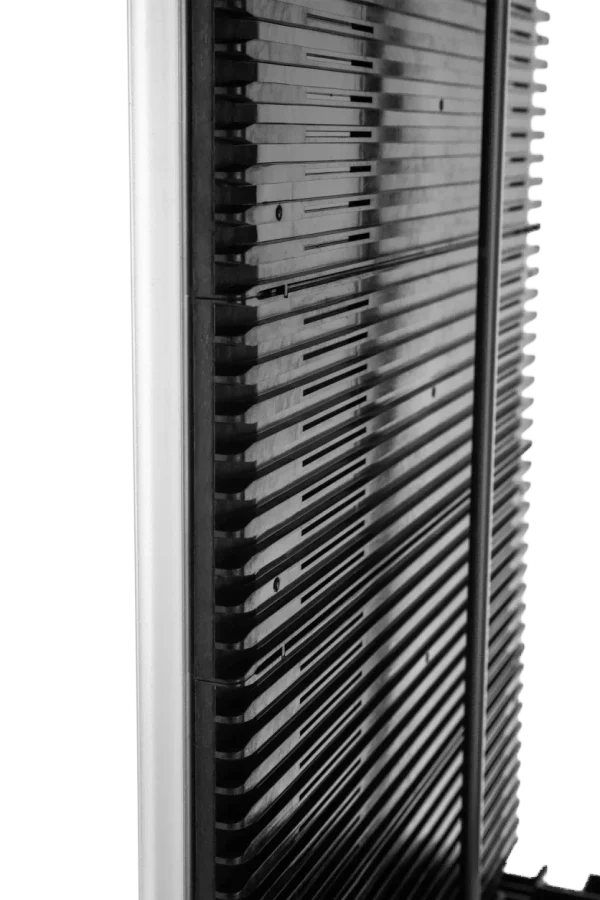

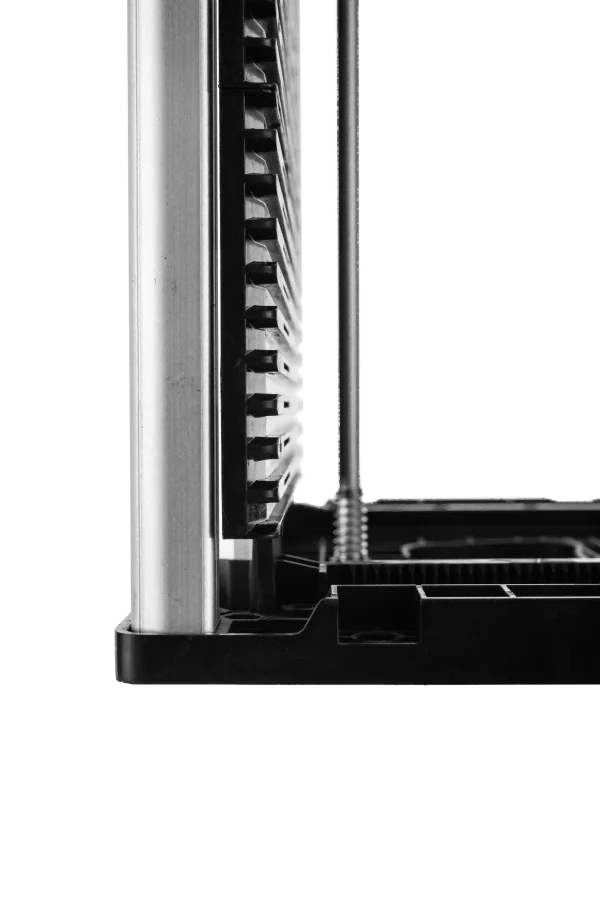

Equipped with adjustable slot spacing, it is compatible with various sizes of circuit boards. The smooth burr-free slot structure avoids scratching or abrasion on board surfaces. With sturdy construction and stackable design, it saves workshop space and supports frequent manual handling and automated loading and unloading.
This standard ESD storage solution ensures standardized material management and improves production yield rate, with customized sizes and high-temperature resistant versions available.
Technical Specification
| Product name | ESD Magazine Rack | |
| Product model | QD-9805301B2-9A | |
 |
||
| Adjustment method | Gear adjustment | |
| Specification parameters | ●External dimensions: | 355*320*563mm |
| ●Base position: | A：34mm；B：34mm | |
| ●Adjustable width: | 40-250mm | |
| ●Groove depth: | 3.5mm | |
| ●Slot width: | 5mm | |
| ●Pitch: | 10mm | |
| ●Number of slots: | 40 | |
| ●Weight: | 4.08kg | |
| ●Carrier: | 20kg | |

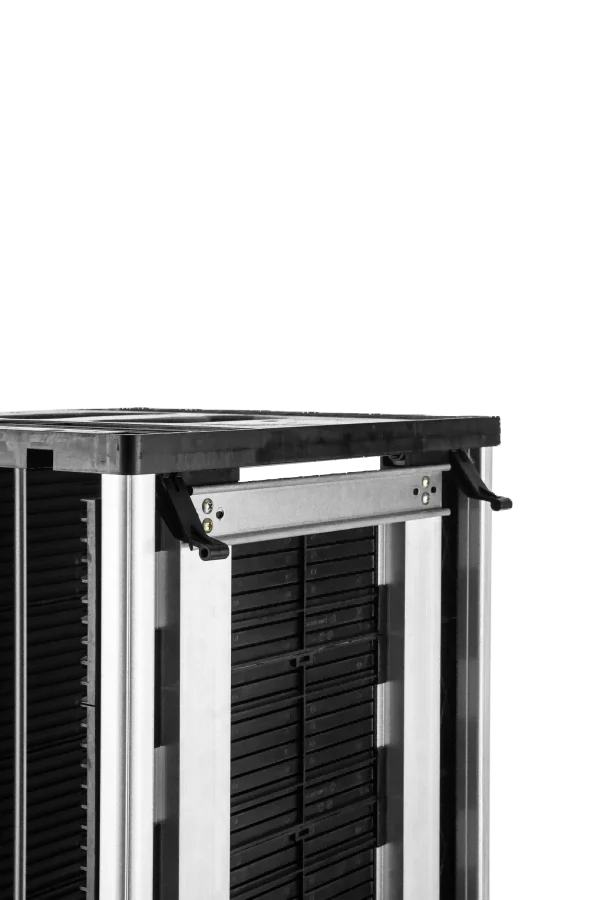

| Product description | ◆Baffle mechanism: spring lever | |
| ◆Static index: 10e4-10e8 Ω | ||
| ◆Side board structure: 5 pieces of boards | ||

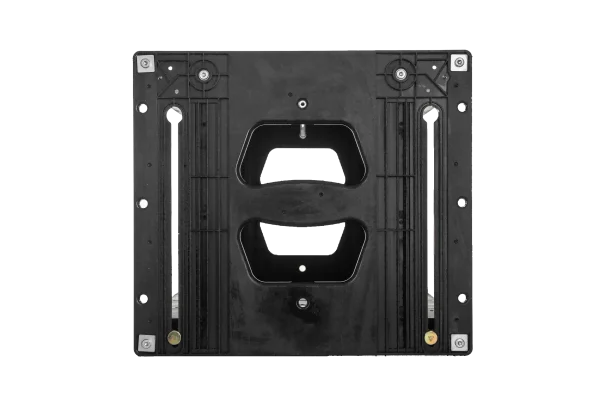

| ◆Bottom plate material: plastic | ||
| Temperature resistance options | □100°C □120°C □150°C (can enter the 120°C oven) | |
| Optional accessories | □Metal folder | |
| □Stacking screw | ||
| □Layer number label | ||
| □Anti-sit tag | ||
*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
