Product Introduction
Anti-static racks are storage devices designed to prevent static electricity buildup and discharge during storage, handling, and transfer. They are widely used in electronics, semiconductor, medical, and other static-sensitive industries. By reducing the risk of electrostatic damage, they help protect stored items while improving workplace safety, organization, and operating efficiency. These racks are also known as tray racks, anti-static tray racks, or anti-static turnover racks.

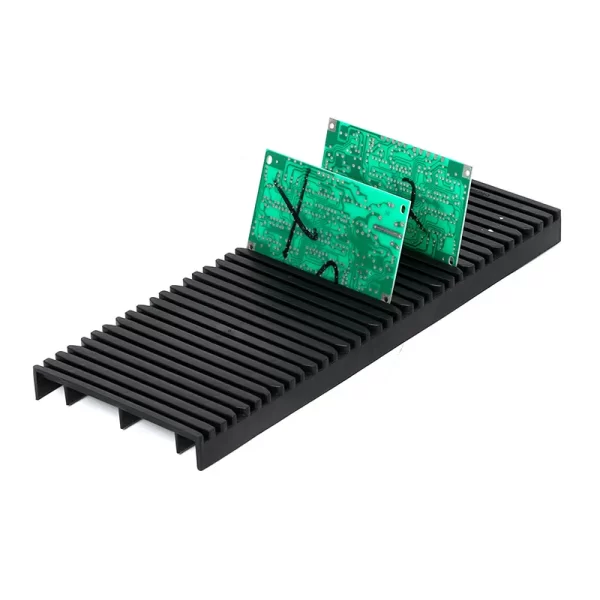

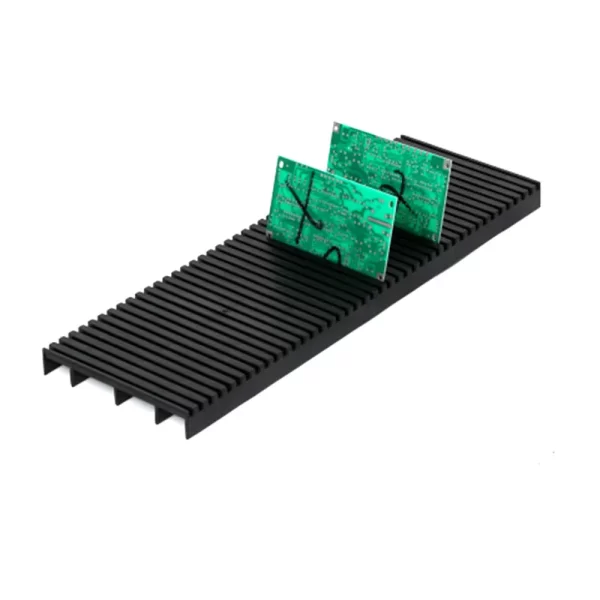

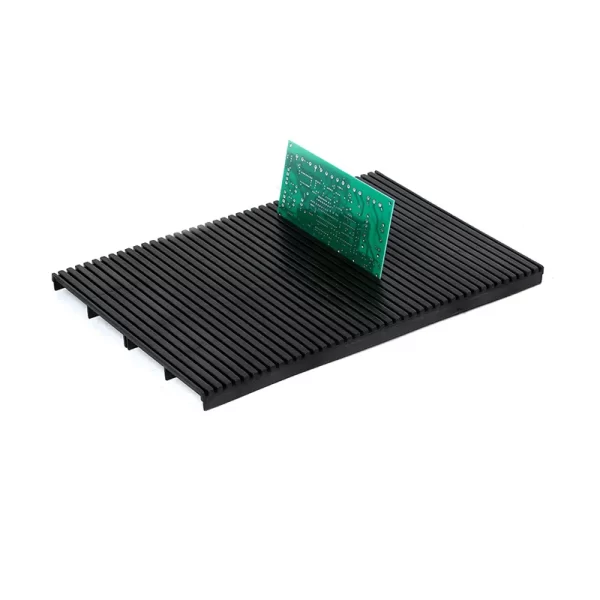

For electronic production environments, ESD PCB storage racks provide a practical solution for keeping PCBs and sensitive components separated, organized, and protected throughout the workflow.
Application Scenarios
Electronics manufacturing: Suitable for temporary storage and transfer of SMT components such as chips, LEDs, capacitors, and resistors, helping reduce static damage during production.
Laboratory: Used for dust-proof and anti-static storage of precision instruments, optical lenses, and medical consumables.
Warehousing and logistics: Helps classify and circulate static-sensitive products in different areas, improving workshop organization and 6S management. ESD PCB storage racks are also suitable for controlled storage areas where PCB protection and efficient handling are required.
Technical Specification
| Product name | ESD Rack | ||||
| Product model | QD-9805405-1 | QD-9805406 | QD-9805406-2 | QD-9805406-3 | |
 |
 |
 |
 |
||
| Specification parameters | ●External dimensions: | 190*250*95mm | 410*280*22mm | 410*138*22mm | 340* 130*22mm |
| ●Groove depth: | 3mm | 5mm | 5mm | 5mm | |
| ●Groove width: | 3mm | 2.8mm | 3mm | 3mm | |
| ●Pitch: | 8mm | 10mm | 10mm | 10mm | |
| ●Number of slots: | 30 | 42 | 42 | 34 | |
| ●Weight: | 0.41kg | 0.72kg | 0.44kg | 0.33kg | |
| Product description | ◆Static index: 10e4-10e8Ω | ||||
| Temperature resistance options | □ 120°C □ 150°C | ||||
| Color customization | □  □  □  □other |
||||
| Optional accessories | □Anti-static label | ||||
