Product Introduction

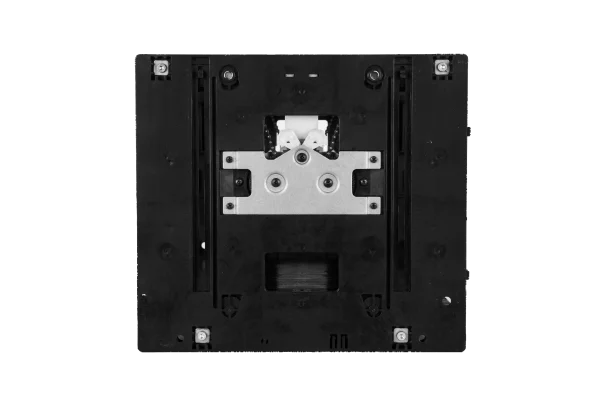

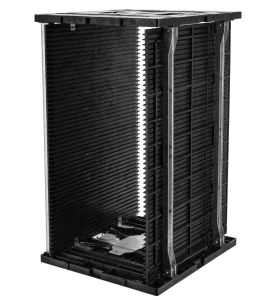

ESD Magazine Rack provides reliable static-dissipative storage for SMT lines, PCB fabrication, electronic assembly and ESD cleanrooms. Made from permanent anti-static material, it maintains stable surface resistance from 10⁴ to 10⁸ Ω, safely draining static charges to protect sensitive PCBs and electronic parts against ESD breakdown, dust attraction and surface scratches. This helps manufacturers cut scrap losses and lift production yield.

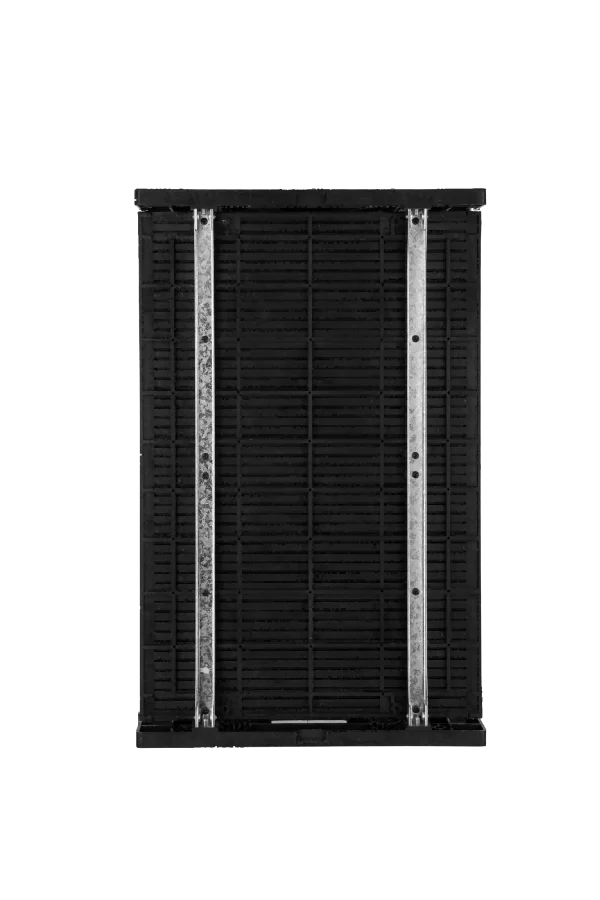

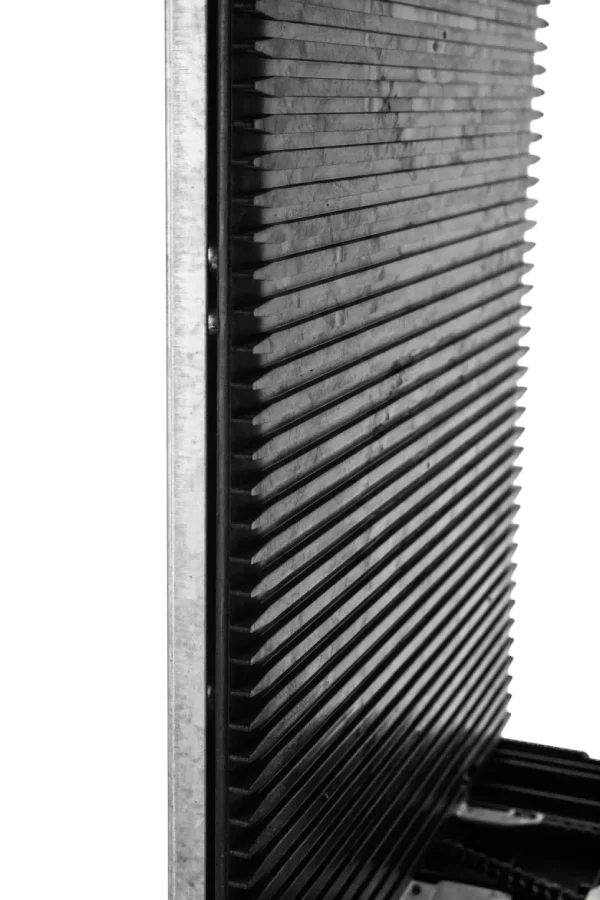

This rack uses a chain adjustment mechanism to modify slot spacing quickly and precisely. Operators adjust baffles easily to accommodate multiple PCB sizes and thicknesses. Smooth, burr-free slots hold circuit boards securely without scratching delicate surfaces.
Built tough and stackable, our ESD magazine rack optimizes floor space for workshops. It handles frequent material turnover and long-term warehousing, and works seamlessly with SMT automatic loaders and unloaders. Fully compliant with industrial ESD and cleanroom requirements, it serves as a cost-effective, durable storage solution for electronics manufacturers worldwide.
Technical Specification
| Product name | ESD Magazine Rack | |
| Product model | QD-9805301S | |
 |
||
| Adjustment method | Chain Adjustment | |
| Specification parameters | ●External dimensions: | 355*320*560 mm |
| ●Base position: | A: 34 mmB: 34 mm | |
| ●Adjustable width: | 50-240mm | |
| ●Groove depth: | 3mm | |
| ●Slot width: | 4.5 mm | |
| ●Pitch: | 10 mm | |
| ●Number of slots: | 50 | |
| ●Weight: | 5.63kg | |
| ●Carrier: | 20kg | |
| Product description | ◆Baffle mechanism: gear lever | |
| ◆Static index: 10e4-10e8 | ||
| ◆Side board structure: whole board | ||
| ◆Bottom plate material: metal plate | ||
| Temperature resistance options | 口80°C □120℃ (cannot enter the oven) | |
| Optional accessories | □Layer number label | |
| □Anti-sit tag | ||
| □Turnover cart (3W-9806101 series) | ||
*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
FAQ
Q1: What is the surface resistance of this ESD magazine rack?
A1: Surface resistance ranges from 10⁴ to 10⁸ Ω, made of permanent anti-static material with stable ESD performance.
Q2: Can this rack work with SMT auto loaders and unloaders?
A2: Yes. It is compatible with most standard SMT automatic loading & unloading machines.
Q3: Is it stackable for storage?
A3: Yes. The sturdy structure supports stacking to save workshop floor space.
