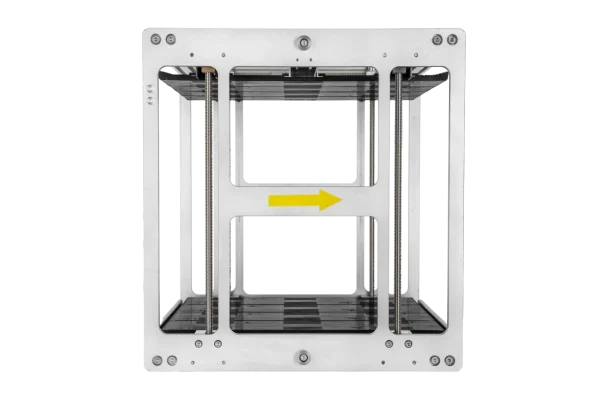

Product Introduction
ESD magazine racks are built with premium anti-static materials, adopting high-performance anti-static engineering plastics and metal frames with professional ESD coating treatment. This premium material combination delivers stable conductivity and efficient static dissipation, quickly draining static charges from stored products and grounding them safely.
Ideal for SMT workshops, electronic component manufacturing and precision electronics processing environments, these ESD Magazine racks effectively discharge static electricity from static-sensitive PCBs, circuit boards and electronic parts during storage and handling. They keep product surface electrostatic potential within a safe range, greatly preventing ESD damage, component breakdown and product defects, and ensuring consistent production quality.
All racks feature precisely controlled surface resistance of 10⁴–10⁸ Ω, fully meeting industrial ESD control standards. With excellent environmental adaptability and material stability, they maintain reliable anti-static performance in both humid rainy seasons and dry, dusty winter workshop conditions.
Technical Specification
| Product name | ESD Magazine rack | ||||

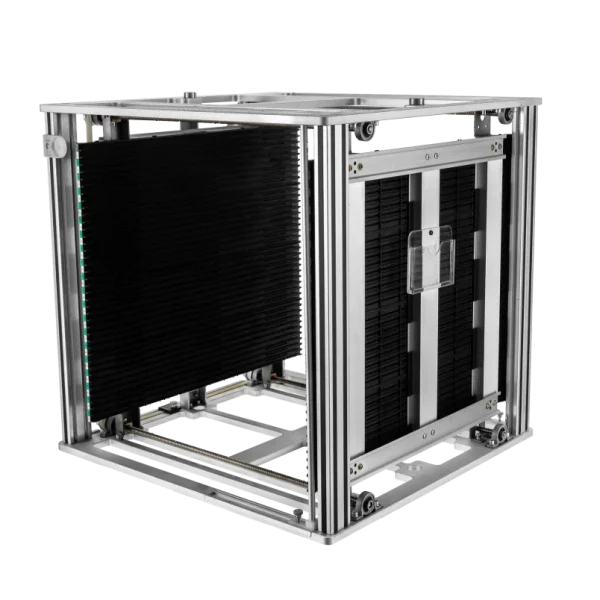

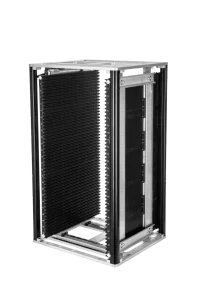

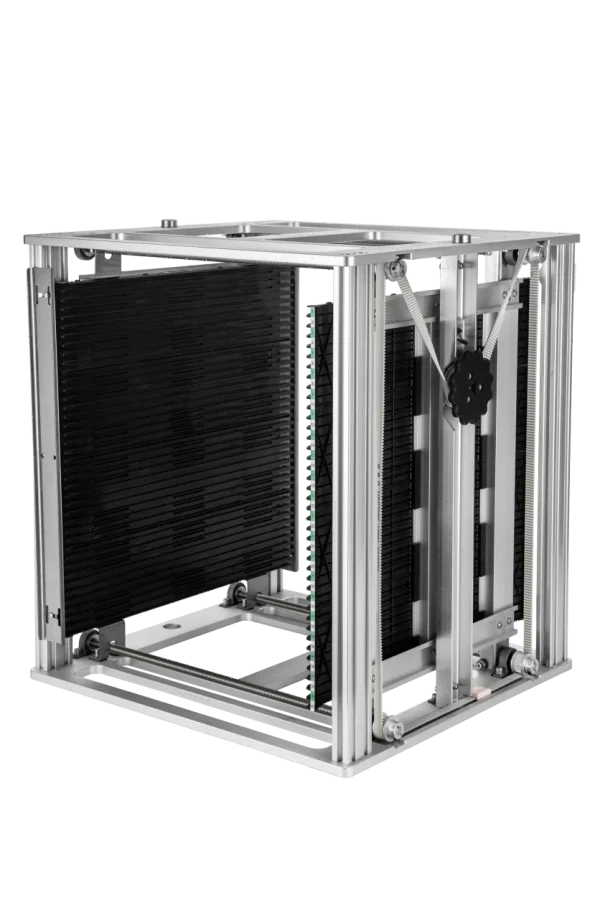

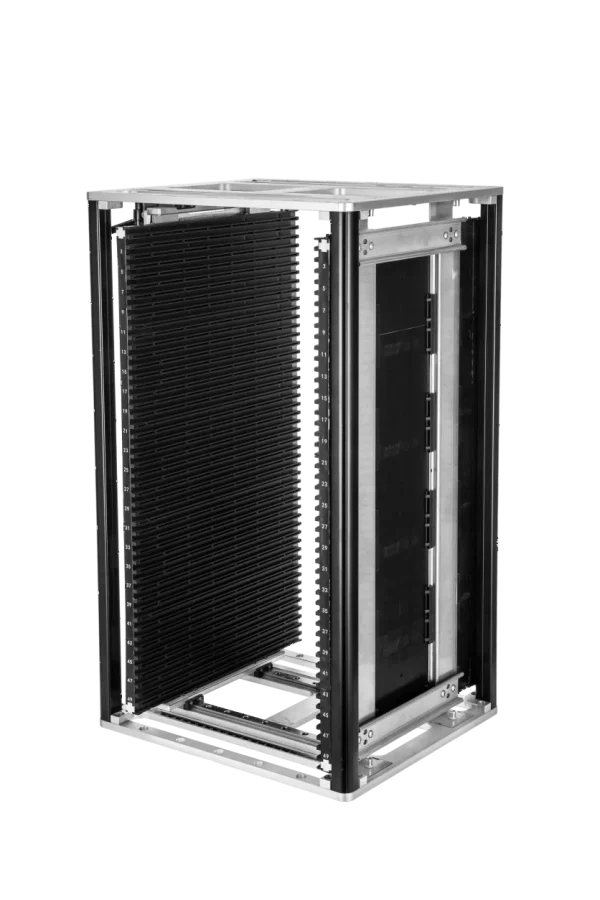

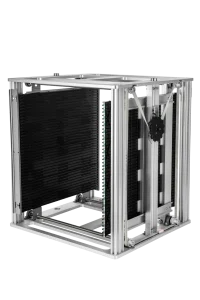

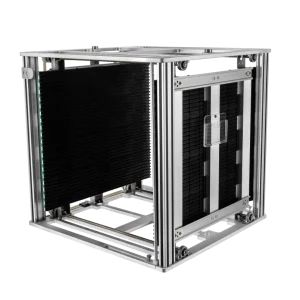

| Product model | QD-9805301B5-3A | QD-9805301B5-3C | QD-9805301B5-4 | QD-9805301B5-6 | |
 |
 |
 |
|||
| Adjustment method | Belt Screw adjustment | Belt Screw adjustment | Slide-in adjustment | Belt Screw adjustment | |
| Specification parameters | ●External dimensions: | 430*460*502.5mm | 490*520*502.5mm | 320*283*555mm | 400*380*563mm |
| ●Base position: | A: 46.5 mmB: 53mm | A: 46.5mmB: 53mm | A: 35 mmB: 26mm | A: 34 mmB: 34mm | |
| ●Adjustable width: | 20-340mm | 20-400mm | 50-210mm | 20-310mm | |
| ●Groove depth: | 3 | 3.5 | 3 | 3.5 | |
| ●Slot width: | 5mm | 5mm | 5mm | 5mm | |
| ●Pitch: | 10mm | 10mm | 10mm | 10mm | |
| ●Number of slots: | 40 | 40 | 50 | 50 | |
| ●Weight: | 10.94Kg | 11.14Kg | 6.38Kg | 9.39Kg | |
| ●Carrier: | 20Kg | 20Kg | 20Kg | 20Kg | |
| Product description | ◆Baffle mechanism: spring lever | ||||
| ◆Static index: 10e4-10e8Ω | |||||
| ◆Side board structure: 5 pieces of boards | ◆Side board structure: 5 pieces of boards | ◆Side board structure: 5 pieces of boards | ◆Side board structure: 5 pieces of boards | ||
| ◆Bottom plate material:Aluminum alloy | |||||
| Temperature resistance options | □100°C □120°C □150°C (can enter the 120°C oven) | ||||
| Optional accessories | □Metal folder | ||||
| □Stacking screw | |||||
| □Layer number label | |||||
| □Anti-sit tag | |||||
*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
