Product Introduction

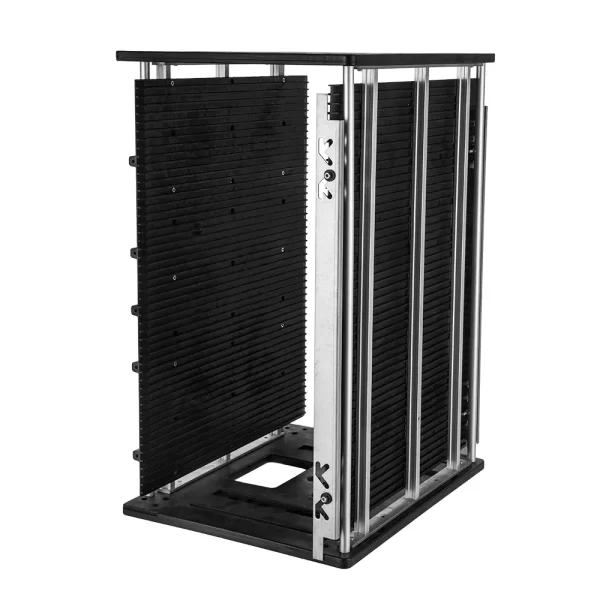

The Adjustable ESD Magazine Rack is a professional anti-static storage solution designed for PCB handling, electronic component storage, and SMT production environments. With excellent ESD protection performance, it helps ensure production efficiency and product safety by preventing damage or performance degradation caused by static electricity.
Made from high-grade anti-static engineering plastics and metal components with anti-static surface coatings, this rack provides durable and reliable protection for printed circuit boards, precision instruments, and sensitive electronic parts. Its adjustable structure allows it to accommodate different PCB sizes, making the Adjustable ESD Magazine Rack suitable for various production and storage requirements.
Available in multiple styles, including multi-layer drawer types, open shelf designs, and foldable models, it can adapt to diverse storage scenarios. Through electroplating, corrosion-resistant spraying, and other surface treatments, the rack offers excellent acid, alkali, and oil resistance. High-quality materials also provide strong wear resistance, enabling the rack to withstand frequent handling in daily use.
In addition, its smooth surface is easy to clean, while the simple and practical structure makes inspection and maintenance more convenient. This helps reduce maintenance costs, minimize downtime, and improve overall workshop management efficiency.
Technical Specification
| Product name | ESD Magazine Rack | |||

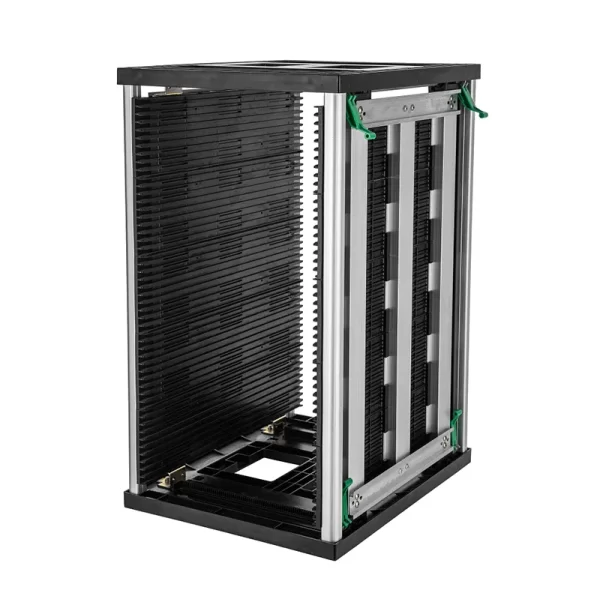

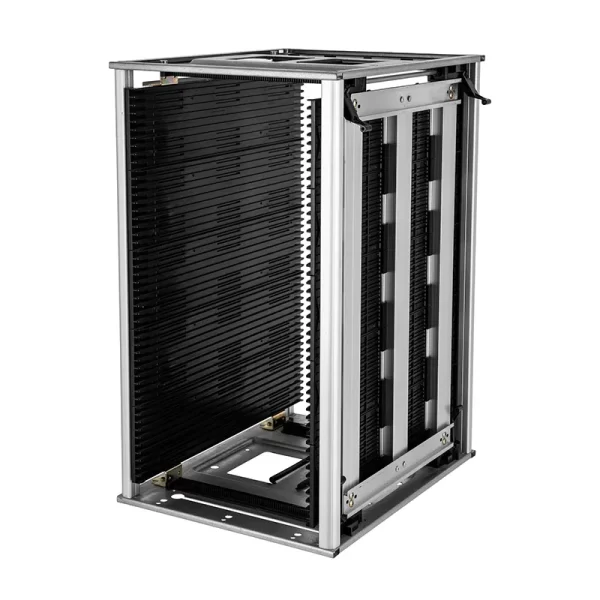

| Product model | QD-9805301B2-2 | QD-9805301B2-5 | QD-9805301N | |
 |
 |
 |
||
| Adjustment method | Gear adjustment | Gear adjustment | Screw adjustment | |
| Specification parameters | ●External dimensions: | 400*320*573mm | 400*320*563mm | 460*320*568mm |
| ●Base position: | A: 34mm; B: 39mm | A: 34 mm B: 34 mm | A: 34 mm B: 34.5 mm | |
| ●Adjustable width: | 50-250mm | 50-250mm | 50-250mm | |
| ●Groove depth: | 3.5mm | 3.5mm | 3 mm | |
| ●Slot width: | 5mm | 5mm | 7 mm | |
| ●Pitch: | 10 mm | 10 mm | 10 mm | |
| ●Number of slots: | 50 | 50 | 50 | |
| ●Weight: | 5.42Kg | 6.54Kg | 7.72Kg | |
| ●Carrier: | 20kg | 20kg | 20kg | |
| Product description | ◆Baffle mechanism: spring lever | |||
| ◆Static index: 10e4-10e8 Ω | ||||
| ◆Side board structure: 5 pieces of boards | ◆Side board structure: Whole board | |||
| ◆Bottom plate material: Plastic bottom plate | ◆Bottom plate material: Metal bottom plate | ◆Bottom plate material: Plastic bottom plate | ||
| Temperature resistance options | 口100°C 口120°C 口150°C (cannot enter the oven) | |||
| Optional accessories | □Metal folder | |||
| □Layer number label | ||||
| □Anti-sit label | ||||
| □Turnover car (QD-9806101 series) | ||||
| □Stacking screws | ||||
*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
