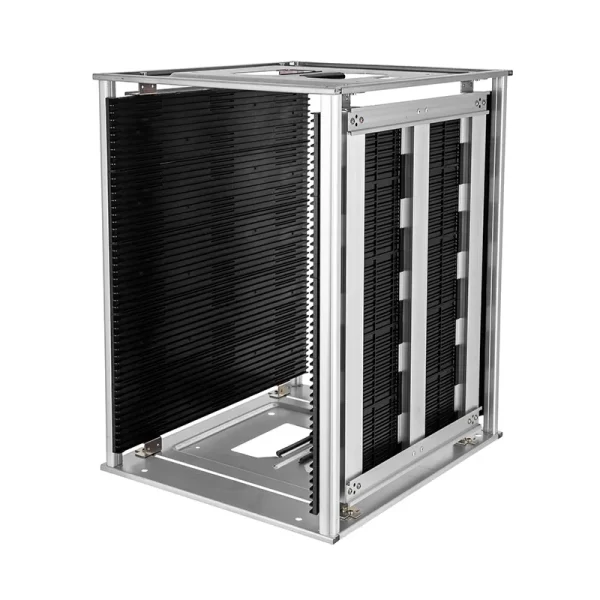

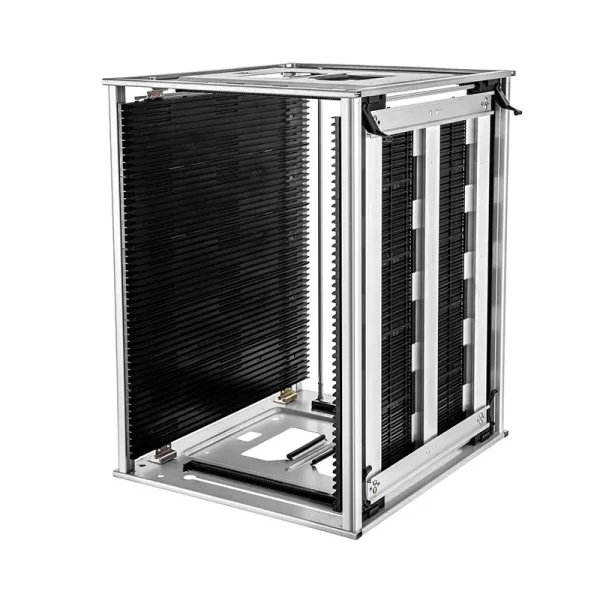

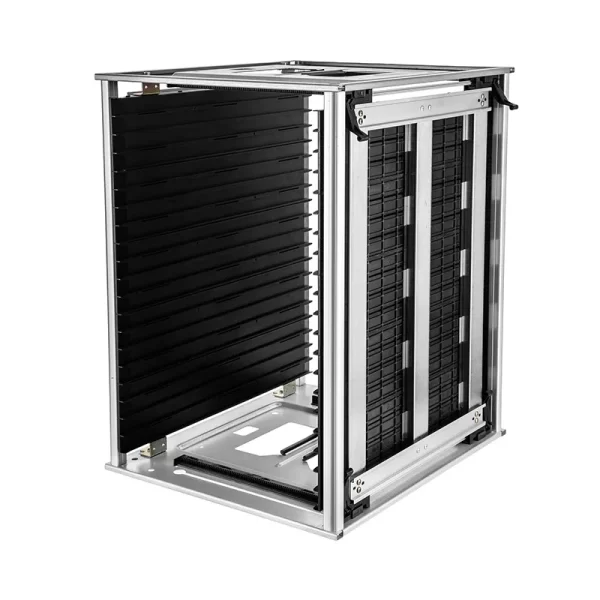

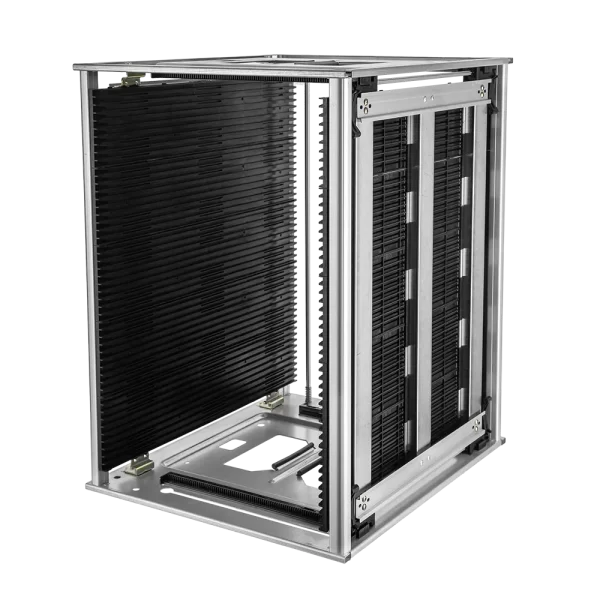

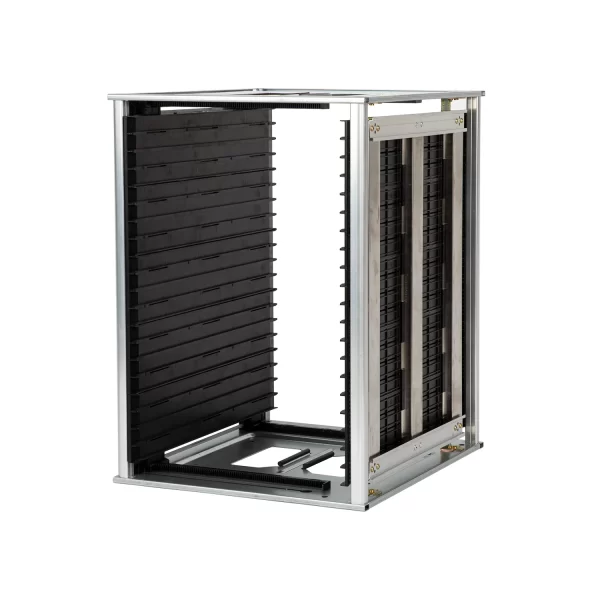

Product Introduction
The anti-static magazine rack is an indispensable professional storage tool for electronics manufacturing, PCB handling, and precision component management. With excellent ESD protection and reliable structural performance, it helps ensure both production efficiency and operational safety.
Made from high-quality anti-static engineering plastics and metal materials with anti-static surface coatings, the rack provides durable protection against electrostatic discharge. Through electroplating, corrosion-resistant spraying, and other surface treatment processes, it offers excellent resistance to acid, alkali, oil, moisture, and daily wear. Its strong material structure allows it to withstand frequent handling in demanding production environments.
As an ESD safe rack, it features a smooth surface that is easy to clean, while its simple and practical design makes inspection and maintenance more convenient. This helps reduce maintenance costs, minimize downtime, and improve workshop management efficiency.
Choosing our ESD storage racks means choosing a safer, more efficient, and more economical storage solution for PCB boards, electronic components, and sensitive parts, helping enterprises improve production quality and overall productivity.
Technical Specification
| Product name | ESD Magazine Rack | ||||
| Product model | QD-9805301C | QD-9805301C-2 | QD-9805301C-3 | QD-9805301C-4 | |
 |
 |
 |
 |
||
| Adjustment method | Gear adjustment | Gear adjustment | Screw adjustment | Gear adjustment | |
| Specification parameters | ●External dimensions: | 460*400*563mm | 460*400*569mm | 460*400*563mm | 460*400*363mm |
| ●Base position: | A: 34 mm B: 34 mm | A: 34 mm B: 37 mm | A: 34mm; B: 34mm. | A: 34mm; B: 34mm. | |
| ●Adjustable width: | 80-330mm | 50-330mm | 50-330mm | 50-330mm | |
| ●Groove depth: | 3.5mm | 3.5mm | 3.5mm | 3.5mm | |
| ●Slot width: | 5mm | 5mm | 5mm | 5mm | |
| ●Pitch: | 10 mm | 10 mm | 10 mm | 10 mm | |
| ●Number of slots: | 50 | 50 | 50 | 30 | |
| ●Weight: | 7. 83Kg | 7.9Kg | 7.9Kg | 6.1Kg | |
| ●Carrier: | 20kg | 20kg | 20kg | 20kg | |
| Product description | ◆Baffle mechanism: spring lever | ◆Baffle mechanism: spring lever | ◆Baffle mechanism: spring lever | ◆Baffle mechanism: spring lever | |
| ◆Static index: 10e4-10e8 Ω | ◆Static index: 10e4-10e8 Ω | ◆Static index: 10e4-10e8 Ω | ◆Static index: 10e4-10e8 Ω | ||
| ◆Side board structure: 5 pieces of boards | ◆Side board structure: 5 pieces of boards | ◆Side board structure: 5 pieces of boards | ◆Side board structure: 5 pieces of boards | ||
| ◆Bottom plate material: metal bottom plate | ◆Bottom plate material: metal bottom plate | ◆Bottom plate material: metal bottom plate | ◆Bottom plate material: metal bottom plate | ||
| Temperature resistance options | □100°C □120°C □150°C (can enter the 120°C oven) | ||||
| Optional accessories | □Metal folder | ||||
| □Stacking screw | |||||
| □Layer number label | |||||
| □Anti-sit tag | |||||
| □Turnover cart (QD-9806101 series) | |||||
| Product name | ESD Magazine Rack | ||||
| Product model | QD-9805301C-1 | QD-9805301C-5 | QD-9805301C-6 | QD-9805301C-7 | |
 |
 |
||||
| Adjustment method | Gear adjustment | Gear adjustment | Gear adjustment(Quick) | Gear adjustment | |
| Specification parameters | ●External dimensions: | 460*320*563mm | 460*400*563mm | 460*400*563mm | 460*400*363mm |
| ●Base position: | A: 34 mm B: 34 mm | A: 21 mm B: 34 mm | A: 34mm; B: 34mm. | A: 34mm; B: 34mm. | |
| ●Adjustable width: | 40-250mm | 85-345mm | 50-330mm | 50-330mm | |
| ●Groove depth: | 3.5mm | 5mm | 3.5mm | 3.5mm | |
| ●Slot width: | 5mm | 20mm | 5mm | 5mm | |
| ●Pitch: | 10 mm | 25 mm | 10 mm | 10 mm | |
| ●Number of slots: | 50 | 50 | 50 | 30 | |
| ●Weight: | 7. 22Kg | 7.6Kg | 7.76Kg | 6.1Kg | |
| ●Carrier: | 20kg | 20kg | 20kg | 20kg | |
| Product description | ◆Baffle mechanism: spring lever | ◆Baffle mechanism: spring lever | ◆Baffle mechanism: spring lever | ◆Baffle mechanism: spring lever | |
| ◆Static index: 10e4-10e8 Ω | ◆Static index: 10e4-10e8 Ω | ◆Static index: 10e4-10e8 Ω | ◆Static index: 10e4-10e8 Ω | ||
| ◆Side board structure: 5 pieces of boards | ◆Side board structure: 5 pieces of boards | ◆Side board structure: 5 pieces of boards | ◆Side board structure: 3 pieces of boards | ||
| ◆Bottom plate material: metal bottom plate | ◆Bottom plate material: metal bottom plate | ◆Bottom plate material: metal bottom plate | ◆Bottom plate material: metal bottom plate | ||
| Temperature resistance options | □100°C □120°C □150°C (can enter the 120°C oven) | ||||
| Optional accessories | □Metal folder | ||||
| □Stacking screw | |||||
| □Layer number label | |||||
| □Anti-sit tag | |||||
| □Turnover cart (QD-9806101 series) | |||||
*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
