Product Introduction

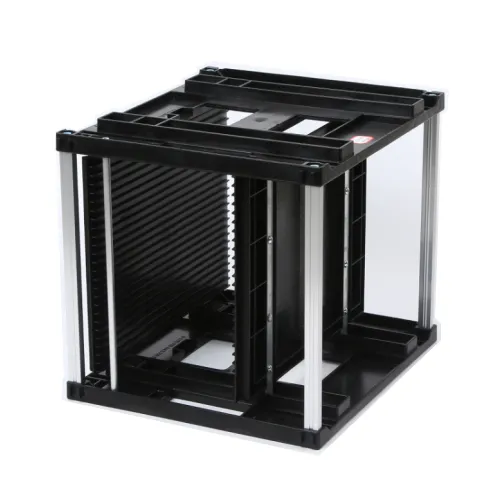

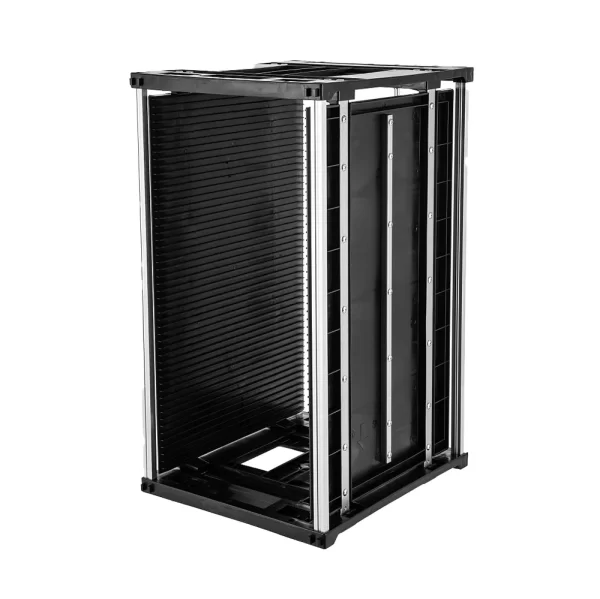

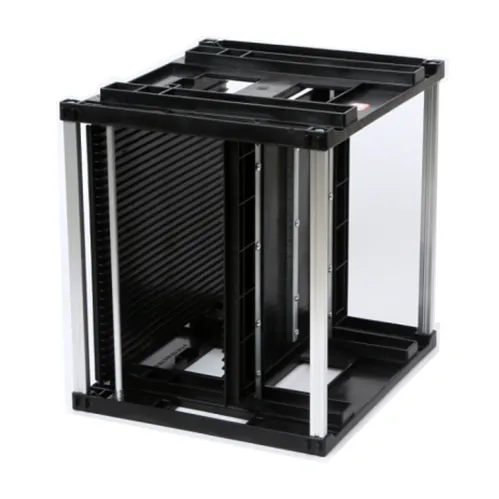

ESD Magazine Racks are durable anti-static storage solutions designed for electrostatic discharge protection environments, ensuring the safe handling, organization, and storage of sensitive electronic components. Made from conductive or static-dissipative materials, these racks effectively prevent static electricity accumulation and protect PCB boards, electronic parts, tools, and documents from potential ESD damage.
As reliable ESD PCB racks, they can safely discharge static electricity from the surface of stored items, preventing charge buildup and high potential differences. With excellent toughness, wear resistance, moisture resistance, corrosion resistance, heat insulation, and shock resistance, they provide long-lasting performance in demanding production environments.
These ESD PCB storage racks are economical, durable, and highly practical for electronics manufacturing, SMT production lines, assembly workshops, and component storage areas. By reducing electrostatic damage during production, they help lower defect rates, control operating costs, improve product quality, and increase overall production efficiency.
Technical Specification
| Product name | ESD Magazine Rack | ||||||
| Product model | QD-9805301A | QD-9805301A-1 | QD-9805301A-2 | ||||
 |
 |
 |
|||||
| Adjustment method | Screw adjustment | ||||||
| Specification parameters | ●External dimensions: | 355*315*580mm | 355*315*315mm | 355*315*365mm | |||
| ●Base position: | A: 34mm; B: 35. 5mm | A: 34mm; B: 35. 5mm | A: 34mm; B: 35.5mm | ||||
| ●Adjustable width: | 90-250mm | 90-250mm | 90-250mm | ||||
| ●Groove depth: | 3.5mm | 3.5mm | 3.5mm | ||||
| ●Slot width: | 7mm | 7mm | 7mm | ||||
| ●Pitch: | 10mm | 10mm | 10mm | ||||
| ●Number of slots: | 50 | 25 | 30 | ||||
| ●Weight: | 5.74Kg | 3.22Kg | 3.55Kg | ||||
| ●Carrier: | 20kg | 10kg | 12kg | ||||
| Product description | ◆Baffle mechanism: spring lever | ||||||
| ◆Static index: 10e4-10e8 Ω | |||||||
| ◆Side board structure: whole board | |||||||
| ◆Bottom plate material: plastic | |||||||
| Temperature resistance options | □80°C | ||||||
| Optional accessories | □Anti-sit label | ||||||
| □Turnover cart (QD-9806101 series) | |||||||
*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
Product Features
1. Highly effective anti-static performance
The anti-static collection rack is made of anti-static engineering plastics, metal coated with anti-static coating and other materials. The surface resistance is controlled at 10⁶ – 10¹¹Ω, which can quickly conduct static electricity, and the performance is not affected by the environment, and can protect electronic components stably for a long time.
2. Strong carrying capacity
After rigorous mechanical design, the metal steel frame structure is stable, and the large model can bear hundreds of kilograms. Whether it is storing small electronic components or heavier industrial parts, it can remain stable and is suitable for a variety of scenarios such as electronic manufacturing and mechanical processing.
3. Flexible structural design
There are many styles available, including multi-layer drawers, open shelves, and foldable styles, to meet different storage needs. Some are also equipped with adjustable shelves, which can freely adjust the layer spacing according to the height of the items to make full use of the space.
4. Corrosion and wear resistance
Through electroplating, spraying corrosion-resistant coating and other processes, it can resist acid, alkali and oil corrosion. High-quality materials have strong wear resistance and are not easily worn even when frequently transporting goods, reducing maintenance costs.
5. Convenient cleaning and maintenance
The surface is smooth, dust and dirt are difficult to adhere to, and can be cleaned with a wet cloth. The structure is simple, with few parts, and troubleshooting is convenient. The damaged parts can be quickly located and replaced to ensure efficient production operation.
