Product Introduction

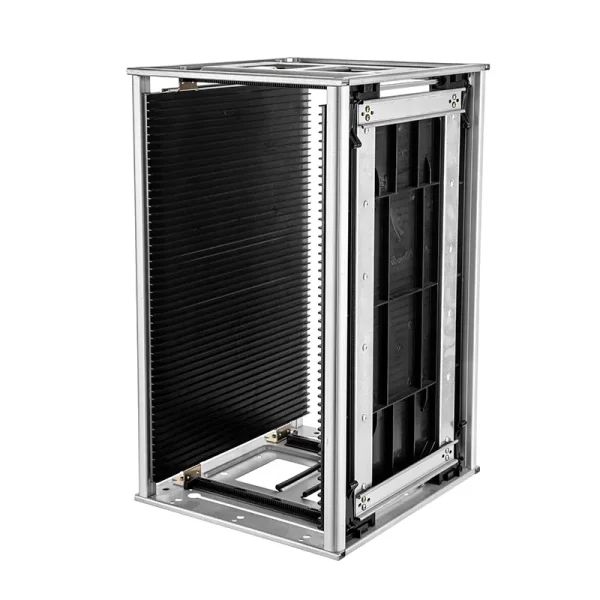

In electronics manufacturing, precision instrument production, and other static-sensitive environments, anti-static magazine racks are essential professional storage tools. With reliable ESD protection and a durable structure, they help ensure both production efficiency and product safety.
These ESD racks are made from high-quality anti-static engineering plastics and metal materials with anti-static surface coatings. The surface resistance is precisely controlled within 106−1011Ω, allowing static electricity to be safely discharged and directed to the ground. Even in complex workshop environments, they provide stable and long-lasting protection for electronic components, PCB boards, precision instruments, and other sensitive products, effectively preventing damage or performance degradation caused by electrostatic discharge.
Designed with a strong metal steel frame and a rigorous mechanical structure, the racks offer excellent stability and load-bearing capacity. Large-size models can support up to hundreds of kilograms, making them suitable for both classified storage of small electronic components and temporary storage of heavier industrial parts.
Widely used in electronics manufacturing, SMT production lines, mechanical processing, and precision assembly workshops, these ESD board racks provide a safe, organized, and efficient solution for PCB handling, component storage, and static-sensitive material management.
Technical Specification
| Product name | ESD Magazine Rack | ||||||||||
| Product model | QD-9805301B1 | QD-9805301B1-1 | QD-9805301B1-2 | QD-9805301B1-3 | QD-9805301B1-4 | ||||||
 |
 |
 |
 |
 |
|||||||
| Adjustment method | Gear adjustment | Screw adjustment | Gear adjustment | ||||||||
| Specification parameters | ●External dimensions: | 355*320*563mm | 355*320*563mm | 355*320*563mm | 355*320*363mm | 355*320*563mm | |||||
| ●Base position: | A: 34mm; B: 34mm | A: 34mm; B: 34mm | A: 31mm; B: 34mm | A: 34mm; B: 34mm | A: 34mm; B: 34mm | ||||||
| ●Adjustable width: | 40-250mm | 40-250mm | 40-250mm | 40-250mm | 40-250mm | ||||||
| ●Groove depth: | 3.5mm | 3.5mm | 3.5mm | 3.5mm | 3.5mm | ||||||
| ●Slot width: | 5mm | 5mm | 5mm | 5mm | 7mm | ||||||
| ●Pitch: | 10mm | 10mm | 10mm | 10mm | 20 mm | ||||||
| ●Number of slots: | 50 | 50 | 50 | 30 | 25 | ||||||
| ●Weight: | 5.56Kg | 5.33Kg | 5.54 | 4.52Kg | 5.6Kg | ||||||
| ●Carrier: | 20kg | 20kg | 20kg | 12kg | 20kg | ||||||
| Product description | ◆Baffle mechanism: spring lever | ||||||||||
| ◆Static index: 10e4-10e8Ω | |||||||||||
| ◆Side board structure: 5 pieces of boards | |||||||||||
| ◆Bottom plate material: galvanized bottom plate | |||||||||||
| Temperature resistance options | 口100°C 口120°C 口150°C (can enter 120°C oven) | ||||||||||
| Optional accessories | □Metal folder | ||||||||||
| □Stacking screw | |||||||||||
| □Layer number label | |||||||||||
| □Anti-sit tag | |||||||||||
| □Turnover cart (QD-9806101 series) | |||||||||||
| Product name | ESD Magazine Rack | ||||||||||
| Product model | QD-9805301B1-5 | QD-9805301B1-6 | QD-9805301B1-7 | QD-9805301B1-8 | QD-9805301B1-9 | ||||||
 |
 |
 |
 |
 |
|||||||
| Adjustment method | Gear adjustment | Gear adjustment | Screw adjustment | Gear adjustment | Gear adjustment | ||||||
| Specification parameters | ●External dimensions: | 355*500*563mm | 550*320*263mm | 355*320*263mm | 710*320*563mm | 355*320*563mm | |||||
| ●Base position: | A: 34mm; B: 34mm | A: 34mm; B: 34mm | A: 34mm; B: 34mm | A: 34mm; B: 34mm | A: 34mm; B: 34mm | ||||||
| ●Adjustable width: | 90-430mm | 40-250mm | 40-250mm | 40-250mm | 40-250mm | ||||||
| ●Groove depth: | 3.5mm | 3.5mm | 3.5mm | 3.5mm | 3.5mm | ||||||
| ●Slot width: | 5mm | 5mm | 5mm | 5mm | 5mm | ||||||
| ●Pitch: | 10mm | 10mm | 10mm | 10mm | 10 mm | ||||||
| ●Number of slots: | 50 | 20 | 10 | 50 | 50 | ||||||
| ●Weight: | 6.94Kg | 3. 99Kg | 3.1Kg | 11.54Kg | 5.9Kg | ||||||
| ●Carrier: | 20kg | 20kg | 10kg | 20kg | 20kg | ||||||
| Product description | ◆Baffle mechanism: spring lever | ||||||||||
| ◆Static index: 10e4-10e8Ω | |||||||||||
| ◆Side board structure: 5 pieces of boards | ◆Side board structure: 2 pieces of boards | ◆Side board structure: 1 pieces of boards | ◆Side board structure: 10 pieces of boards | ◆Side board structure: 5 pieces of boards | |||||||
| ◆Bottom plate material: galvanized bottom plate | |||||||||||
| Temperature resistance options | 口100°C 口120°C 口150°C (can enter 120°C oven) | ||||||||||
| Optional accessories | □Metal folder | ||||||||||
| □Stacking screw | |||||||||||
| □Layer number label | |||||||||||
| □Anti-sit tag | |||||||||||
| □Turnover cart (QD-9806101 series) | |||||||||||
| Product name | ESD Magazine Rack | |||||
| Product model | QD-9805301B1H | QD-9805301B2 | QD-9805301B2-1 | QD-9805301B2-3 | QD-9805301B3 | |
 |
 |
 |
 |
 |
||
| Adjustment method | Screw adjustment | Gear adjustment | Screw adjustment | Gear adjustment | Gear adjustment | |
| Specification parameters | ●External dimensions: | 355*320*563mm | 355*320*563mm | 355*320*563mm | 355*320*563mm | 355*320*563mm |
| ●Base position: | A: 34mm; B: 34mm | A: 34mm; B: 34mm. | A: 34mm; B: 34mm. | A: 34mm; B: 34mm | A: 34mm; B: 33mm . | |
| ●Adjustable width: | 35-250mm | 50-250mm | 30-250mm | 40-250mm | 40-250mm | |
| ●Groove depth: | 3.5mm | 3.5mm | 3.5mm | 3.5mm | 3mm | |
| ●Slot width: | 5mm | 5mm | 10mm | 7mm | 7mm | |
| ●Pitch: | 10 mm | 10 mm | 20 mm | 20 mm | 10 mm | |
| ●Number of slots: | 50 | 50 | 50 | 25 | 50 | |
| ●Weight: | 5.88Kg | 4.18Kg | 4. 07Kg | 4.3Kg | 6.94Kg | |
| ●Carrier: | 20kg | 20kg | 20kg | 20kg | 20kg | |
| Product description | ◆Baffle mechanism: spring lever | |||||
| ◆Static index: 10e4-10e8Ω | ||||||
| ◆Side board structure: 5 pieces of puzzle | ◆Side board structure: Whole board | |||||
| ◆Bottom plate material: galvanized | ◆Bottom plate material: plastic | ◆Bottom plate material: plastic | ◆Bottom plate material: plastic | ◆Bottom plate material: galvanized | ||
| Temperature resistance options | 口200°C (can enter 160°C oven) | 口100°C 口120°C 口150°C (can enter 120°C oven) | ||||
| Optional accessories | 口Metal folder | |||||
| 口Stacking screw | ||||||
| 口Layer number label | ||||||
| 口Anti-sit label | ||||||
| □Turnover cart (QD-9806101 series) | ||||||
| Product name | ESD Magazine Rack | |||||
| Product model | QD-9805301B3-1 | QD-9805301B3-2 | QD-9805301B3-3 | QD-S9805301B4 | QD-S9805301B4-1 | |
 |
 |
 |
 |
 |
||
| Adjustment method | Screw adjustment | Gear adjustment | Gear adjustment | Gear adjustment | Screw adjustment | |
| Specification parameters | ●External dimensions: | 355*320*563mm | 355*500*563mm | 355*320*563mm | 355*320*563mm | 355*320*563mm |
| ●Base position: | A: 34mm; B: 33mm | A: 34mm; B: 33mm | A: 31mm; B: 33mm | A: 34 mmB: 33 mm | A: 34 mmB: 33 mm | |
| ●Adjustable width: | 30-250mm | 90-435mm | 40-250mm | 40-250mm | 40-250mm | |
| ●Groove depth: | 3mm | 3mm | 3mm | 3mm | 3mm | |
| ●Slot width: | 7mm | 7mm | 7mm | 7mm | 7mm | |
| ●Pitch: | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | |
| ●Number of slots: | 50 | 50 | 50 | 50 | 50 | |
| ●Weight: | 6.8Kg | 8.24kh | 6. 9kg | 5.52kg | 5.48kg | |
| ●Carrier: | 20kg | 20kg | 20kg | 20kg | 20kg | |
| Product description | ◆Baffle mechanism: spring lever | |||||
| ◆Static index: 10e4-10e8 Ω | ||||||
| ◆Side board structure: whole board | ||||||
| ◆Bottom plate material: metal | ◆Bottom plate material: metal | ◆Bottom plate material: metal | ◆Bottom plate material: plastic | ◆Bottom plate material: plastic | ||
| Temperature resistance options | 口100°C 口120°C 口150°C (can enter 120C oven) | |||||
| Optional accessories | □Metal folder | |||||
| □Stacking screw | ||||||
| □Layer number label | ||||||
| □Anti-sit tag | ||||||
| □Turnover cart (QD-9806101 series) | ||||||
| Product name | ESD Magazine Rack | |||||
| Product model | QD-9805301Q | QD-9805301R | QD-9805301R-1 | QD-9805301R-2 | QD-9805301R-3 | |
 |
 |
 |
 |
|||
| Adjustment method | Quick adjustment | Screw adjustment | Screw adjustment | Screw adjustment | Screw adjustment | |
| Specification parameters | ●External dimensions: | 355*320*563 mm | 355*320*565 mm | 355*320*565 mm | 355*320*568 mm | 355*320*568 mm |
| ●Base position: | A: 34 mmB: 34 mm | A: 34mm; B: 34mm | A: 34mm; B: 34mm | A: 33mm; B: 33.5mm | A: 33mm; B: 33.5mm | |
| ●Adjustable width: | 50-250mm | 50-250mm | 50-230mm | 50-240mm | 50-230mm | |
| ●Groove depth: | 3.5mm | 4mm | 4mm | 4mm | 4mm | |
| ●Slot width: | 5 mm | 7mm | 7mm | 7mm | 7mm | |
| ●Pitch: | 10 mm | 10mm | 10mm | 10mm | 10mm | |
| ●Number of slots: | 50 | 50 | 50 | 25 | 50 | |
| ●Weight: | 5.53 kg | 7.12Kg | 8.5Kg | 6.72Kg | 8.68Kg | |
| ●Carrier: | 20 kg | 20 kg | 20 kg | 20 kg | 20kg | |
| Product description | ◆Baffle mechanism: spring stop lever | |||||
| ◆Static index: 10e4-10e8Ω | ||||||
| ◆Side board structure: 5-piece boards | ◆Side board structure: whole board | |||||
| ◆Bottom plate material: metal plate | ◆Bottom plate material: plastic board | ◆Bottom plate material: metal plate | ◆Bottom plate material: plastic board | ◆Bottom plate material: metal plate | ||
| Temperature resistance options | □100℃ □120℃ □150 ℃ | 口125°C | ||||
| Optional accessories | □Metal folder | |||||
| □Stacking screws | ||||||
| □Layer number label | ||||||
| □Anti-sit tag | ||||||
| □Turnover cart (QD-9806101 series) | ||||||
*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
