Product Overview

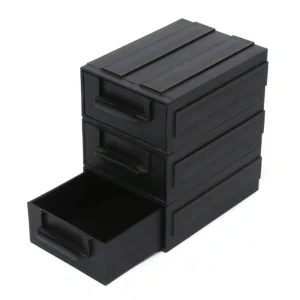

Drawer-type ESD bin for bench-side and line-side staging — quick pull-out access for ICs and small parts.

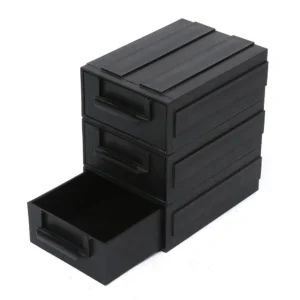

Three model sizes in the QD-9805103 series cover different drawer volumes; units interlock horizontally and stack vertically to form modular arrays without sacrificing ESD-safe handling.
Key Specifications
| Item | QD-9805103 | QD-9805103-2 | QD-9805103B |
|---|---|---|---|
| External dimensions (L×W×H) | 136×95×48 mm | 136×95×48 mm | 240×141×72 mm |
| Inner dimension | 136×87×40 mm | 127×88×41 mm | 238×133×63 mm |
| Drawer outer (L×W×H) | 127×88×41 mm | 136×43×40 mm | 250×132×61 mm |
| Drawer inner (L×W×H) | 122×82×38 mm | 122×38×37 mm | 232×125×58 mm |
| Side wall | 2 mm | 2 mm | 2.5 mm |
| Bottom wall | 2.5 mm | 2.5 mm | 2.5 mm |
| Weight | 0.17 kg | 0.21 kg | 0.63 kg |
| Surface resistance | 104–108 Ω | ||
| Stackable / interlockable | Yes — top/bottom and left/right slots | ||
| Internal slots | Yes | ||
| Optional | Anti-static label, partition, digital counter (model dependent) | ||
Product Features
Pull-out drawer with handle for fast pick-and-place in assembly areas.
Conductive PP helps limit charge buildup on bin surfaces.
Stack vertically and connect horizontally to expand capacity.
Moisture-resistant, wear-resistant structure for workshop environments.
Materials and Structure
Injection-molded conductive polypropylene (PP) forms the bin body and drawer. Slot walls and bottom thickness are designed for repeated opening/closing and light impact in production areas. Anti-static performance is expressed as surface resistance in the 104–108 Ω range per product labeling.
Applications
Typical deployment covers SMT line staging, EPA bench-side sorting, and modular storage arrays for expandable line-side capacity.
- SMT line component staging and kitting
- IC and small electronic part sorting near workstations
- EPA bench-side buffer storage before kitting or inspection
Suitable Buyers
- Electronics manufacturers and EMS/ODM factories
- SMT equipment integrators and line-layout suppliers
- Industrial distributors sourcing ESD storage consumables
Custom Options
Color customization and heat-resistance grades (e.g. 120°C / 150°C class options per project) can be discussed for volume orders. Optional anti-static labels and partitions are available. Share your target temperature, color, and quantity for engineering review.
Packaging and Shipping
Standard export packing is applied for bulk shipments from Quandun’s manufacturing base in Yueqing, Zhejiang. Sample and MOQ arrangements are quoted per order — contact export sales for lead time and freight options.
Quality Control and Certifications
Quandun manufactures ESD storage products under ISO 9001 / ISO 14001 management systems. Materials and products are positioned for IEC 61340-5-1 and ANSI/ESD S20.20 aligned EPA usage. RoHS and SGS-related compliance statements are available per Quandun’s official documentation.
How to Order
- Select model (QD-9805103 / QD-9805103-2 / QD-9805103B) and quantity.
- Confirm color, heat-resistance, and accessory needs.
- Submit RFQ via Contact Us or OEM/ODM for custom projects.
Frequently Asked Questions
What is an ESD component bin with drawer?
It is a conductive PP bin with a pull-out drawer for classified storage of ESD-sensitive components, combining drawer access with stackable modular bins.
Which models are available?
Three sizes are listed: QD-9805103, QD-9805103-2, and QD-9805103B. See the specification table for exact dimensions and weight.
What is the surface resistance range?
Product labeling indicates 104–108 Ω surface resistance for static-dissipative handling.
Can bins be stacked or connected?
Yes. Units include stacking and left/right interlock slots for modular arrays.
Can I customize color or heat resistance?
Color and elevated temperature grades can be quoted for volume orders. Submit requirements through the quote form.
How do I request a sample or bulk quote?
Use the Contact Us form with model number, quantity, and destination country.
