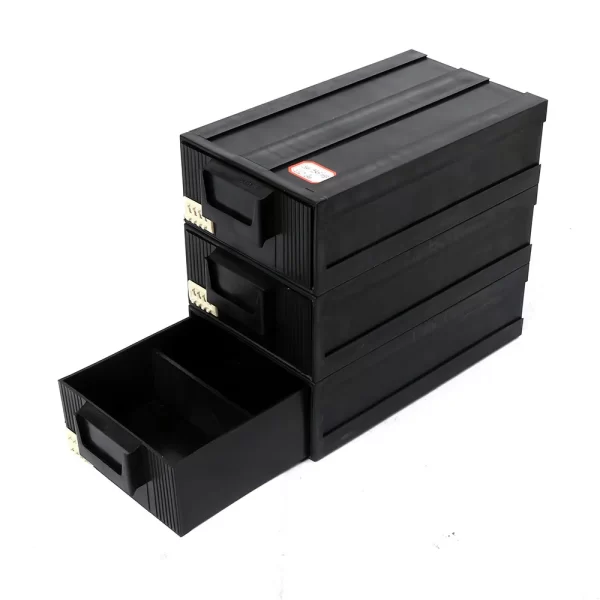

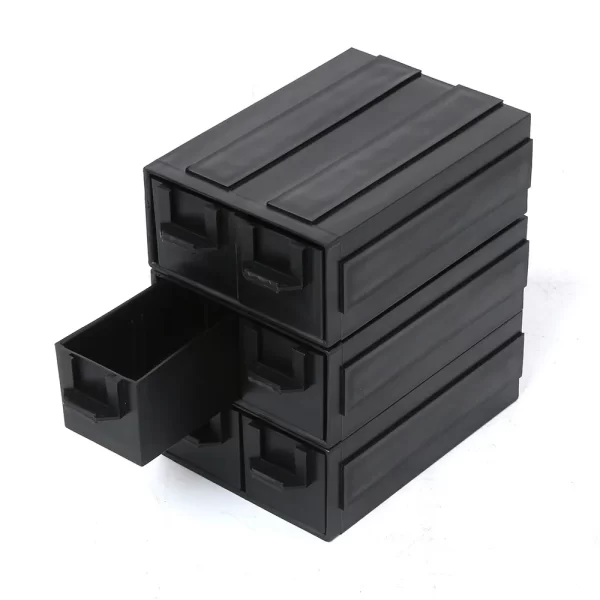

Product Introduction
ESD Bins with Drawer is a professional storage container designed for electronic components, small parts, and precision items. As a reliable ESD Storage Bins solution, it helps prevent static charge generation and accumulation, protecting sensitive components from electrostatic discharge (ESD) damage during storage and handling.
Excellent Anti-Static Performance
Made from conductive PP (polypropylene) and other high-quality anti-static materials through injection molding, the bin effectively dissipates surface static charges and reduces the risk of voltage differences. This ensures a safe storage environment for electronic components and other static-sensitive products.
Convenient Classification and Organization
The internal divider slots and optional plug-in panels allow users to organize components by type, size, and specification. The drawer-style structure keeps items neatly arranged, making identification, access, and inventory management faster and more efficient.
Flexible Modular Combination
Each storage bin features interlocking slots on the top, bottom, left, and right sides, allowing multiple bins to be combined into customized storage systems. This modular design improves space utilization while enhancing overall stability and storage capacity.
Strong and Durable Construction
Manufactured with high-strength materials, the ESD Storage Bins offer excellent durability, moisture resistance, corrosion resistance, heat insulation, and wear resistance. They are designed for long-term repeated use in industrial environments such as electronics manufacturing, laboratories, and workshops.
Easy Drawer Operation
Featuring a convenient drawer design with an ergonomic handle, the bin allows smooth opening and closing for quick access to stored components. Its simple and practical structure helps improve workplace efficiency and organization.
Technical Specification
| Product name | ESD Bin | |||
| Product model | QD-9805103 | QD-9805103-2 | QD-9805103B | |
 |
 |
 |
||
| Specification parameters | ●External dimensions: | 136*95*48mm | 136*95*48mm | 240*141*72mm |
| ●Inner dimension: | 136*87*40mm | 127 *88*41mm | 238*133*63mm | |
| ●Outer dimensions of drawer: | 127*88*41mm | 136*43*40mm | 250*132*61mm | |
| ●Drawer inner size: | 122*82*38mm | 122*38*37mm | 232*125*58mm | |
| ●Side wall: | 2mm | 2mm | 2.5mm | |
| ●Bottom wall: | 2.5mm | 2.5mm | 2.5mm | |
| ●weight: | 0. 17kg | 0.21kg | 0.63kg | |
| Product description | ◆Slot inside | |||
| ◆Can be stacked, can be connected left and right | ||||
| ◆Static index: 10e4-10e8Ω | ||||
| ◆With digital counter | ||||
| Temperature resistance customization | 口120°C 口150°C | |||
| Color customization | 口 口  口  口other |
|||
| Optional accessories | 口Anti-static label | |||
| 口Anti-static partition | ||||
