Product Introduction

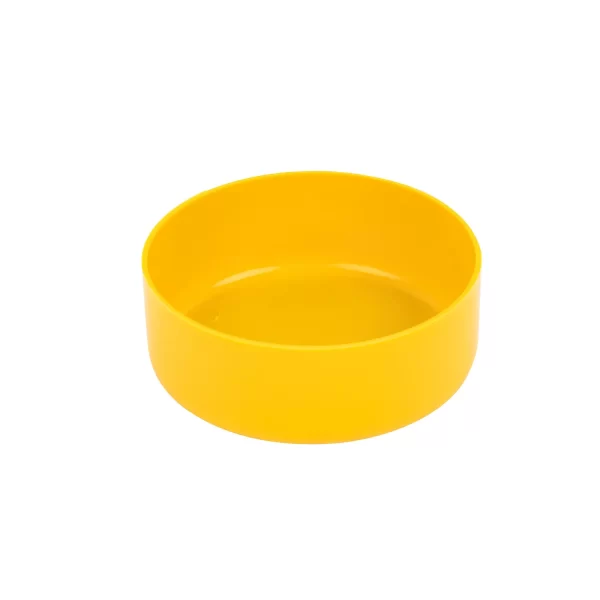

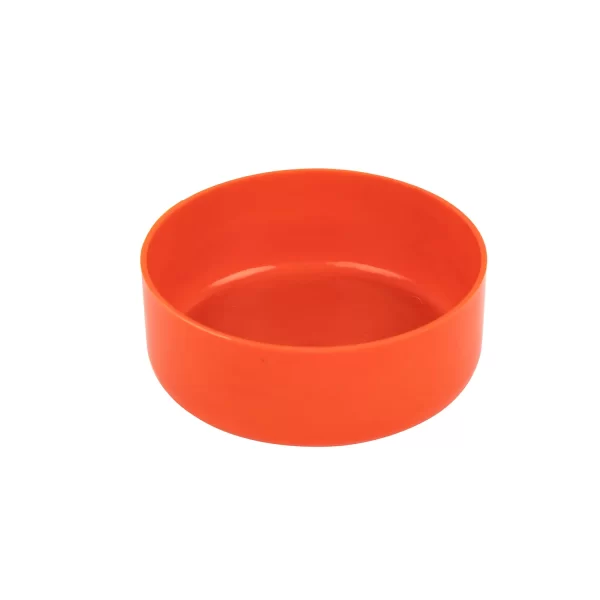

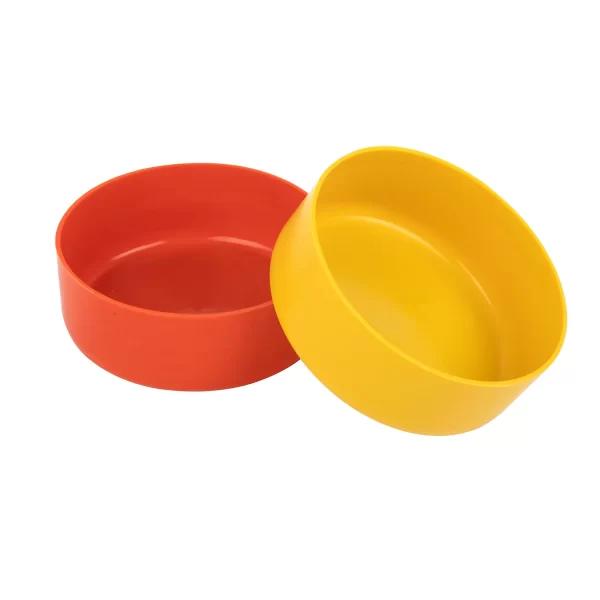

ESD Round Component Bin, also known as an anti-static parts bin, is a specialized storage container designed for electronic components, precision parts, and industrial materials. As one type of ESD safe bins, it helps prevent the generation and accumulation of static electricity, effectively protecting sensitive components from electrostatic discharge (ESD) damage during storage, handling, and transportation.
Applications
ESD round component bins are widely used in electronics manufacturing, automotive, machinery, home appliances, light industry, and other industrial fields. They are suitable for various production processes, including component storage, material distribution, transportation, and circulation management.
These bins can be used together with logistics containers, shelves, workstations, and warehouse management systems, providing an efficient storage solution for factories, assembly lines, and electronic component handling areas.
Product Features
1. Excellent Anti-Static Performance
The ESD round component bin is designed with anti-static materials that effectively dissipate surface charges, preventing static electricity accumulation and reducing the risk of high-voltage differences that may damage sensitive electronic components.
2. Durable Material Properties
Made from high-quality engineering plastics, the bins feature excellent performance including:
-
Non-toxic and odorless characteristics
-
Moisture resistance and corrosion resistance
-
Lightweight design with high durability
-
High mechanical strength and impact resistance
-
Superior wear resistance for long-term industrial use
Certain material options can provide enhanced hardness, toughness, and flame-retardant properties to meet different application requirements.
3. Flexible and Space-Saving Design
ESD round component bins are available in various specifications, sizes, and colors to meet different storage needs. Customized options such as covers, identification labels, digital markings, and special structures are available.
The stackable design allows multiple bins to be securely combined, maximizing storage space and improving warehouse organization efficiency.
Classification
1. Classification by Application
According to different usage scenarios, ESD component bins can be classified into:
-
Anti-static component bins
-
Conductive component bins
-
Flame-retardant component bins
-
Spare parts component bins
-
IC component bins
-
General-purpose component bins
-
Red defective component bins
2. Classification by Structural Design
Based on structural characteristics, component bins include:
-
Stackable component bins
-
Hanging component bins
-
Flip-top component bins
-
Component bins with covers
-
Slanted-mouth component boxes
-
Flat-mouth component boxes
-
Drawer-type component boxes
-
Digital drawer component boxes
Different structures provide flexible solutions for production lines, warehouses, and electronic assembly environments.
3. Classification by Electrical Properties
According to surface resistance characteristics, ESD storage bins can be divided into:
-
Anti-static type: Surface resistance from 10⁶ to 10⁹ Ω
-
Conductive type: Surface resistance below 10⁶ Ω
-
Insulating type: Surface resistance above 10¹² Ω
With reliable static control performance and versatile designs, these ESD safe storage bins provide an ideal solution for protecting electronic components throughout manufacturing, storage, and logistics processes.
Technical Specification
| Product name | ESD Bin | ||
| Product model | QD-9805102 | QD-9805102-2 | |
 |
 |
||
| Specification parameters | ●External dimensions: | φ 120*45mm | Ø81*40mm |
| ●Inner rulerinch: | φ 116*42.5mm | Ø77*37mm | |
| ●Wall: | 2mm | 2mm | |
| ●Bottom wall: | 2mm | 2mm | |
| ●Weight: | 0.1kg | 0.1kg | |
| Product description | ◆Can be hung (material hanging board) | ||
| ◆Can be stacked, can be connected left and right | |||
| ◆Static index: 10e4-10e8Ω | |||
| Temperature resistance customization | 口120°C 口150°C | ||
| Color customization | 口 口  口  口other |
||
| Optional accessories | 口Anti-static label | ||
*Temperature resistance refers to the set temperature at which the product can enter the oven
