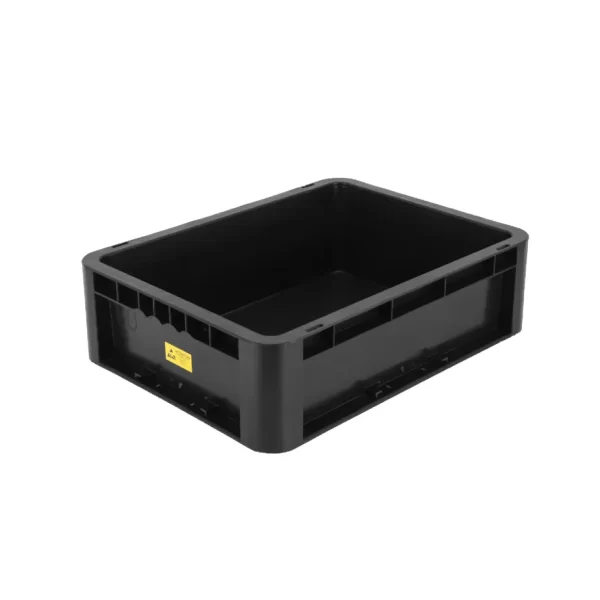

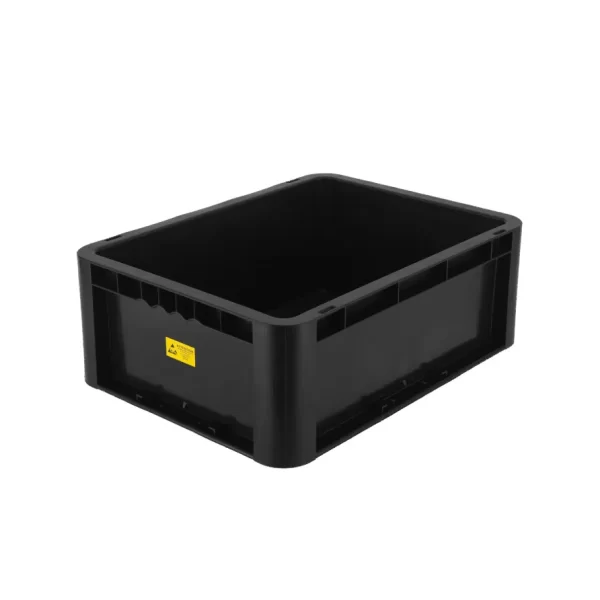

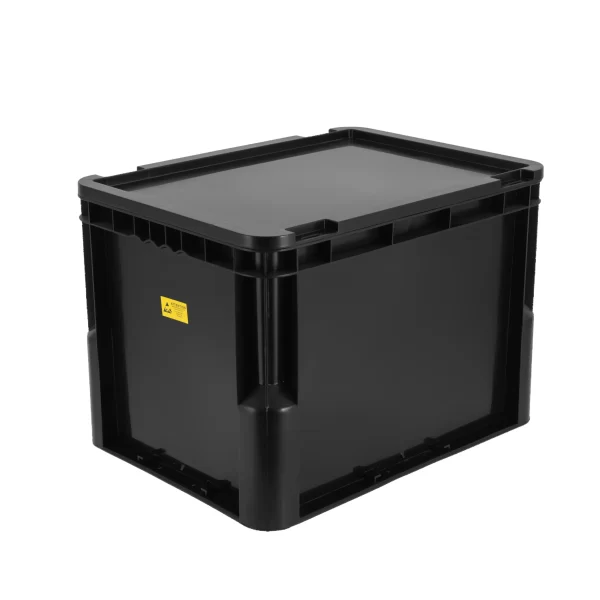

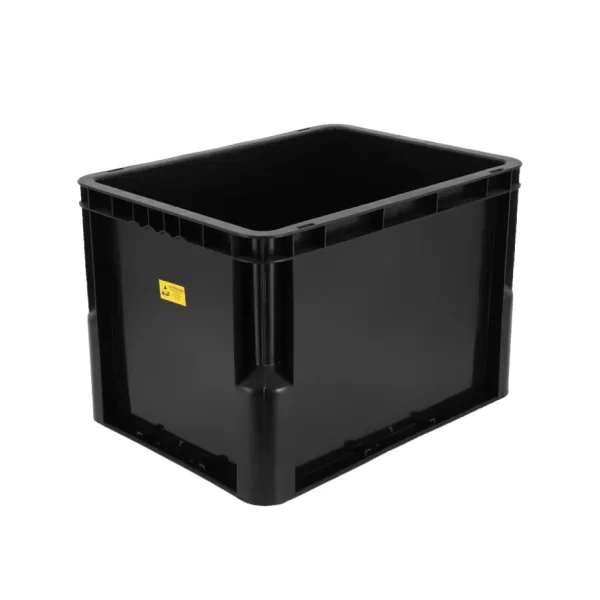

ESD Box for Safe Electronic Component Handling and Storage
Our ESD box is manufactured using advanced composite material technology, with high-quality polypropylene (PP) as the base material and integrated with high-purity, high-performance conductive carbon additives. This special material formulation provides excellent electrostatic discharge (ESD) performance, enabling rapid and effective dissipation of accumulated static charges.
By preventing electrostatic accumulation and reducing the risk of high-voltage potential differences, these anti-static turnover boxes create a low-static environment to protect sensitive electronic components, semiconductor parts, and precision products from electrostatic damage.
Designed for both production line turnover and warehouse storage applications, our ESD storage boxes provide reliable protection throughout manufacturing, transportation, and inventory processes. They help significantly reduce product failures caused by electrostatic discharge, improve handling safety, and enhance overall product quality and operational efficiency.
Technical Specification
| Product name | ESD Box | |||
| Product model | QD-9805345 | QD-9805349 | QD-9805350 | |
 |
 |
 |
||
| Specification parameters | ●External dimensions: | 400*300*120mm | 400*300*150mm | 400*300*280mm |
| ●Inner size: | 355*255*115mm | 355*255*140mm | 355*255*270mm | |
| ●Sidewall: | 2.5mm | 2mm | 2mm | |
| ●Bottom wall: | 3.5mm | 3mm | 3mm | |
| ●Weight: | 0.97kg | 1.07kg | 1.55kg | |
| ●Carrier: | 30kg | 30kg | 30kg | |
| Product description | ◆Static index: 10e4-10e8Ω | |||
| Color customization | □  □  □  □other |
|||
| Optional accessories | □Anti-static label | |||
| □Anti-static partition | ||||
| □Folder | ||||
| □Silk screen/hot stamping | ||||
| □Box cover | ||||
