Product Introduction

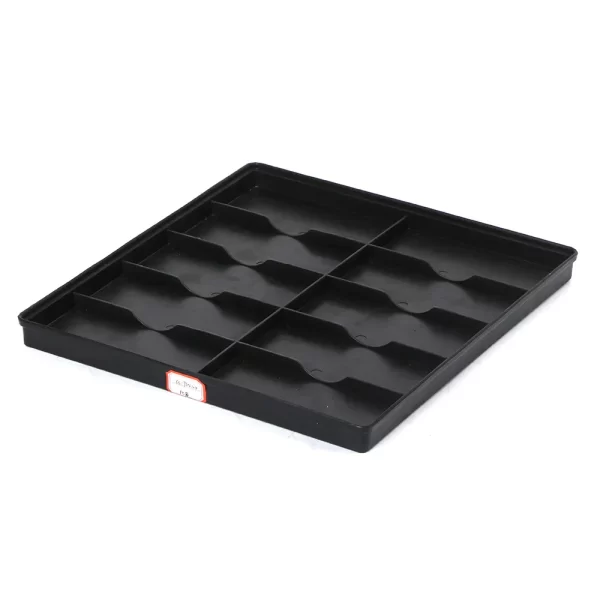

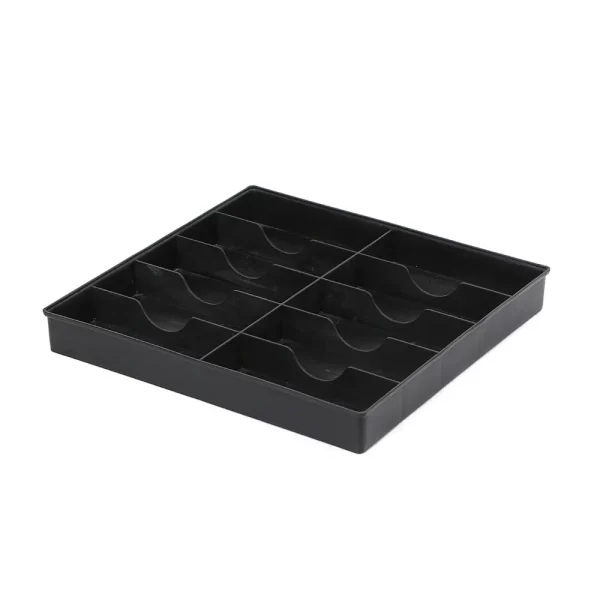

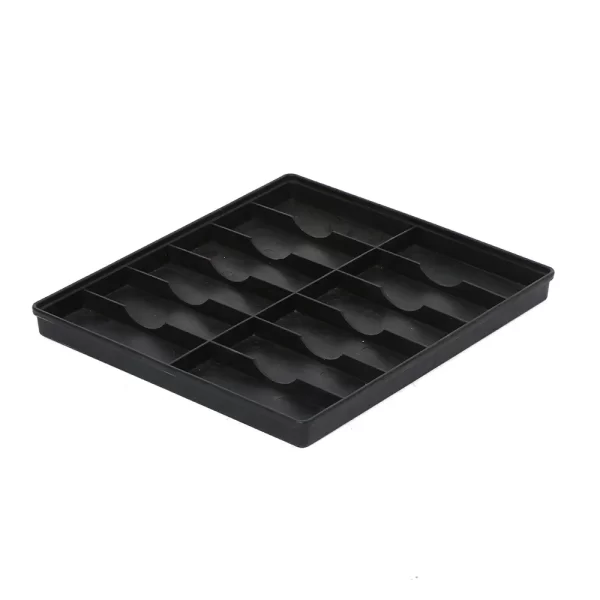

The grid-shaped anti-static tray is a tray made of special conductive material. Its surface has excellent conductive properties and can quickly release the static charge accumulated on the surface of objects, thereby preventing electrostatic discharge (ESD) from damaging electronic equipment and precision instruments. The grid design on the tray can separate different items or electronic components, play a role in classified storage, prevent collision and friction, and also facilitate sorting and counting.
Features
Excellent anti-static performance:
By using conductive PP materials or surface treatment technology, static charges can be quickly introduced into the ground to prevent charge accumulation and excessive potential difference, effectively avoid the occurrence of electrostatic discharge, and provide reliable protection for electrostatic sensitive components.
Sturdy and durable:
Made of high-strength materials, it has a solid structure and can withstand heavy weight and impact. At the same time, its surface is wear-resistant and corrosion-resistant, and it can maintain stable performance in various harsh environments and has a long service life.
Easy to clean:
The surface is smooth and flat, not easy to be stained with dust and dirt, and it is very convenient to clean. Just use clean water or special detergent to easily remove stains, keep the surface of the tray clean and hygienic, and help maintain a good working environment.
A variety of sizes and specifications are available:
A variety of external dimensions and grid sizes are available to meet the needs of different equipment, components and occasions. Users can choose the appropriate pallet size, grid number and load-bearing capacity according to their actual needs, with high flexibility.
Economic and environmentally friendly:
Made of environmentally friendly materials, it complies with relevant national standards and regulations. Its long life and easy maintenance also reduce the cost of use, reduce the cost of frequent pallet replacement and resource waste, and bring higher economic benefits to users
Technical Specification
| Product name | ESD Tray | |||||
| Product model | QD-9805112 | QD-9805120-2 | QD-9805121 | QD-9805122 | QD-9805123 | |
 |
 |
 |
 |
 |
||
| Specification parameters | ●External dimensions: | 457*312*39mm | 340*123*54mm | 350*340*44mm | 315*290*34mm | 290*260*24mm |
| ●Inner size: | 417*292*30mm | 295*112*48mm | 168*64*36 mm | 305*278*27mm | 278*250*20mm | |
| ●Wall: | 2mm | 3.5mm | 3mm | 2.5mm | 2.5mm | |
| ●Bottom wall: | 3mm | 2.5mm | 3mm | 3mm | 3mm | |
| ●Weight: | 0.73Kg | 0.37Kg | 0.8Kg | 0.5Kg | 0.37Kg | |

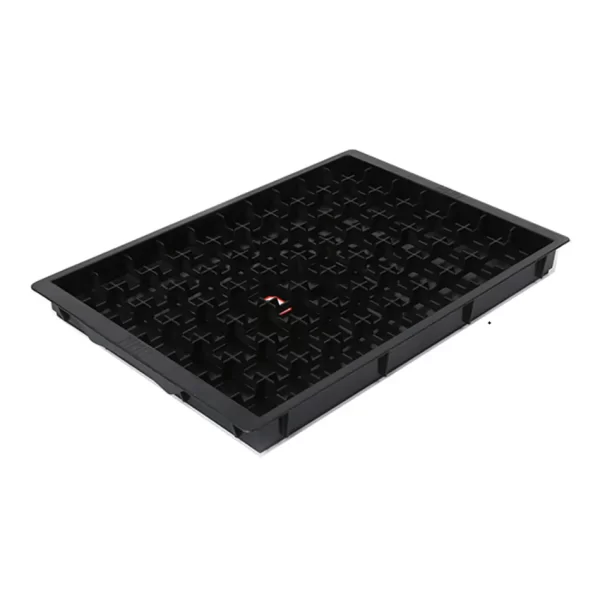

| Product description | ◆The grid is detachable, divided into 70 grids | |||||

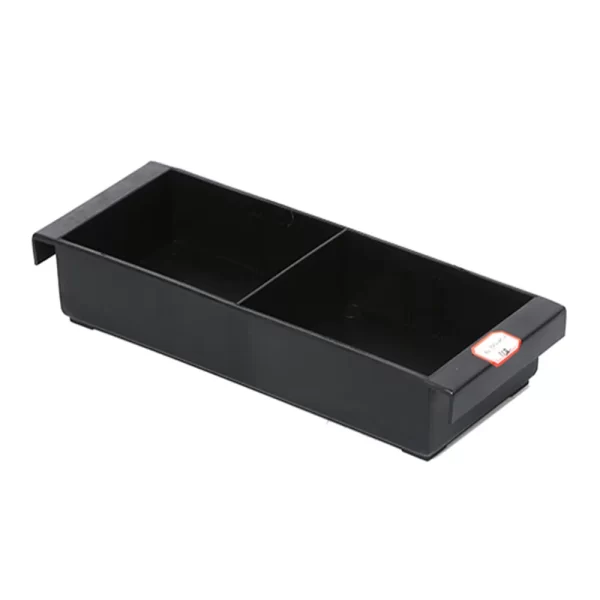

| ◆Static index: 10e4-10e8 | ◆It is divided into two grids, with slots on the long side | ◆Static index: 10e4-10e8 | ●Internally divided into ten grids, each grid: 137*57*23m | ◆Internally divided into twelve grids, each grid: 122*44*1 5mm | ||
| ◆Box cover can be equipped | ◆Static index: 10e4-10e8 | ◆Static index: 10e4-10e8 | ||||
| Temperature resistance customization | □120°C □150°C | |||||
| Color customization | □  □  □  □other |
|||||
| Remarks | Internally divided into ten grids, each grid: 168*64*28mm | |||||
| Optional accessories | □Anti-static label | □Anti-static label | □Anti-static label | □Anti-static label | Anti-static label | |
| □Silk screen printing | □Anti-static partition | □Anti-static partition | □Screen printing | mouth screen printing | ||
| □Screen printing | □Screen printing | |||||
| Product name | ESD Tray | ||||
| Product model | QD-9805124 | QD-9805127 | QD-9805128 | QD-9805129 | |
 |
 |
 |
 |
||
| Specification parameters | ●External dimensions: | 315*290*23mm | 400*325*29mm | 315*202* 16mm | 356*282*20mm |
| ●Inner size: | 300*27 7*18mm | 400*325*29mm | 300* 190* 12mm | 345*270*15mm | |
| ●Wall: | 2.5mm | 3mm | 3mm | 3mm | |
| ●Bottom wall: | 3mm | 4mm | 2.5mm | 2.5mm | |
| ●Weight: | 0.4Kg | 0.74Kg | 0.29Kg | 0.5Kg | |

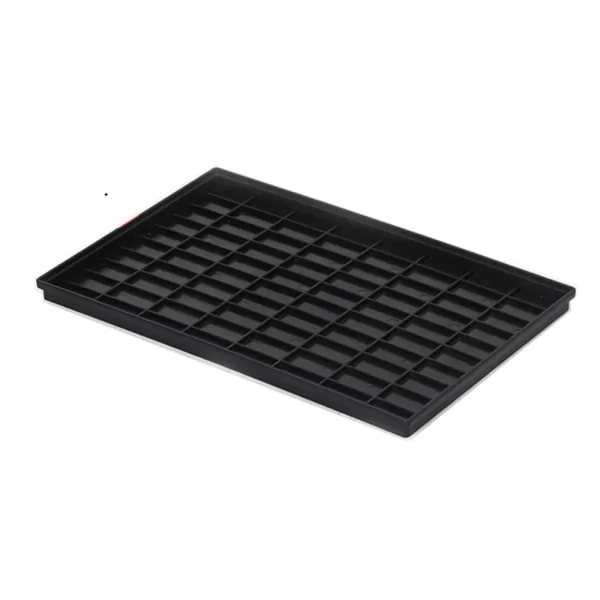

| Product description | ◆Internally divided into ten grids, each grid: 136*56*15mm | ◆Internally divided into 20 grids, each grid: 65*65*25mm | ◆Internally divided into 80 grids, each grid: 36*18*4mm | ◆Internally divided into 80 grids, each grid: 40*24*5mm | |
| ◆Static index: 10e4-10e8Ω | ◆Static index: 10e4-10e8Ω | ◆Static index: 10e4-10e8Ω | ◆Static index: 10e4-10e8Ω | ||
| Temperature resistance customization | □120°C □150°C | ||||
| Color customization | □ □ □ □other |
||||
| Optional accessories | □Anti-static label | □Anti-static label | □Anti-static label | □Anti-static label | |
| □Screen printing | □Screen printing | □Screen printing | □Screen printing | ||
*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
